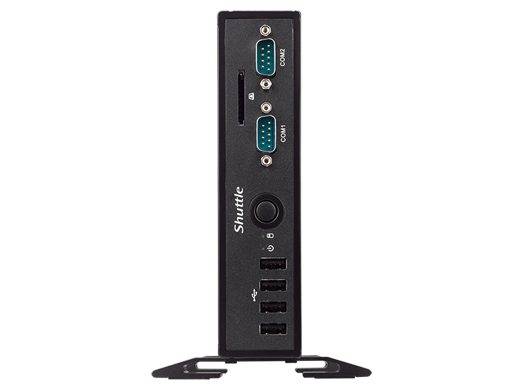

SHUTTLE COMPUTER DS57U 3205U 4GRAM 32GSSD WIN7 EMBEDDED 5801272
SKU
5801272
CA$689.03
DS57U Intel Celeron 3205U 4GB RAM 32GB SSD Windows 7 Embedded and 3 Years Warranty
Category: Desktops
- Primary Information
System Type: Personal Computer Model: DS57U SERIES Cabinet Form Factor: Desktop Processor / Type: Celeron Processor / Manufacturer: Intel Processor / Clock Speed: 1.5 GHz Cache Memory Installed Size: 2 MB Processor / Number: 3205U Cache Memory Installed Size: 2 MB RAM / Technology: DDR3L RAM / Total Slots Qty: 2 RAM / Total Installed Size: 4 GB RAM Form Factor: SO DIMM 204-pin RAM / Max Supported Size: 16 GB Hard Drive / Type: SSD Storage Controller Type: SATA 6Gb/s Hard Drive Capacity / HDD: None GB Hard Drive Capacity / SSD: 32 GB Audio Output: Realtek ALC662 2 channel High Definition audio Storage Controller Type: SATA 6Gb/s Memory Card Reader: SD Card Reader Data Link Protocol: Ethernet Video Output Type: DisplayPort + HDMI dual display Operating System: Microsoft Windows 7 Embedded Power / Device Type: Power Adapter Power / Provided (W): 65 Watt Power / Voltage Required: 100- 240V AC Interfaces & Connections: (1) 2.5 inch SATA connector; (1) eDP panel header; (1) RTC header; (1) Clear CMOS Front I/O Ports: (4) USB 2.0 ports; (1) RS232/RS422/RS485; (1) RS232; (1) SD Card reader Rear I/O Ports: (2) RJ45 Gigabit LAN; (1) HDMI; (1) DisplayPort; (2) USB 3.0 ports; (1) MIC in; (1) Line out; (1) External power on header; (1) Clear CMOS; (1) DC-in Expansion Slots Total (Free): (1) Full size Mini-PCIE (mSATA support); (1) Half size Mini-PCIE Width: 200 Mm Depth: 165 Mm Height: 39.5 Mm Service & Support Type: 3 Years Warranty Features: Form Factor: 1.3L chassis - Memory
RAM / Total Slots Qty: 2 RAM / Technology: DDR3L RAM / Total Installed Size: 4 GB RAM Form Factor: SO DIMM 204-pin RAM / Max Supported Size: 16 GB - Green Product Information
EPEAT Level: Not Included Energy Star Compliant: Not Included - Processor
Processor / Manufacturer: Intel Processor / Type: Celeron Processor / Clock Speed: 1.5 GHz Processor / Number: 3205U Cache Memory Installed Size: 2 MB - Storage
Hard Drive / Type: SSD Hard Drive Capacity / HDD: None GB Hard Drive Capacity / SSD: 32 GB Storage Controller Type: SATA 6Gb/s - Expansion
Interfaces & Connections: (1) 2.5 inch SATA connector; (1) eDP panel header; (1) RTC header; (1) Clear CMOS Expansion Slots Total (Free): (1) Full size Mini-PCIE (mSATA support); (1) Half size Mini-PCIE Front I/O Ports: (4) USB 2.0 ports; (1) RS232/RS422/RS485; (1) RS232; (1) SD Card reader Rear I/O Ports: (2) RJ45 Gigabit LAN; (1) HDMI; (1) DisplayPort; (2) USB 3.0 ports; (1) MIC in; (1) Line out; (1) External power on header; (1) Clear CMOS; (1) DC-in - Networking
Data Link Protocol: Ethernet - Power
Power / Device Type: Power Adapter Power / Provided (W): 65 Watt Power / Voltage Required: 100- 240V AC - Video
Video Output Type: DisplayPort + HDMI dual display - Dimensions&Miscellaneous
Width: 200 Mm Depth: 165 Mm Height: 39.5 Mm - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | SHUTTLE |
|---|---|
| UNSPSC | 43211508 |
| Part# | SHT-DS5700U-Q24300 |
| MFG Part# | DS5700U-Q24300 |
| EPEAT Level | Not Included |
| RAM Form Factor | SO DIMM 204-pin |
| RAM / Total Installed Size | 4 GB |
| Cache Memory Installed Size | 2 MB |
| Processor / Number | 3205U |
| Processor / Manufacturer | Intel |
| RAM / Total Slots Qty | 2 |
| Hard Drive Capacity / SSD | 32 GB |
| Hard Drive / Type | SSD |
| Storage Controller Type | SATA 6Gb/s |
| Hard Drive Capacity / HDD | None GB |
| RAM / Technology | DDR3L |
| Processor / Clock Speed | 1.5 GHz |
| Processor / Type | Celeron |
| Cabinet Form Factor | Desktop |
| Energy Star Compliant | Not Included |
| Data Link Protocol | Ethernet |
| Power / Device Type | Power Adapter |
| Operating System | Microsoft Windows 7 Embedded |
| Audio Output | Realtek ALC662 2 channel High Definition audio |
| System Type | Personal Computer |
| Memory Card Reader | SD Card Reader |
