SHUTTLE COMPUTER SLIM CEL 4205U DUAL LAN FANL MAX 32GB 6472949
SKU
6472949
CA$470.87

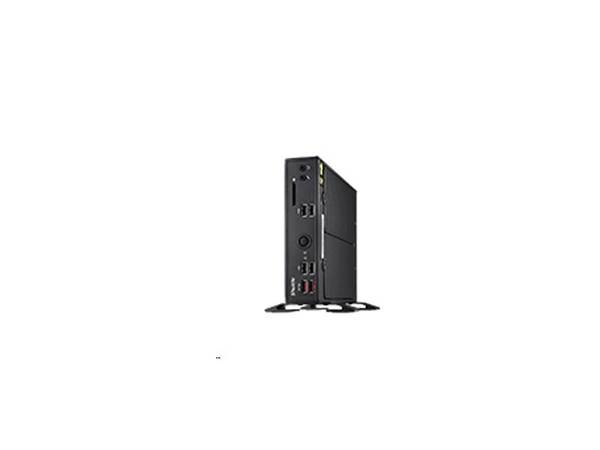

Shuttle XPC Slim DS10U Intel Whiskey Lake Celeron 4205U, Dual Gigabit LAN, Fanless, Triple Video Output DDR4 SODIMM Max 32G
Category: Desktops
- Primary Information
System Type: Personal Computer Model: DS10U Cabinet Form Factor: Slim Desktop Processor / Type: Celeron Processor / Manufacturer: Intel Multi-Core Technology: Dual-Core Processor / Clock Speed: 1.8 GHz Cache Memory Installed Size: 2 MB Processor / Number: 4205U Processor / Installed Qty: 1 Cache Memory Installed Size: 2 MB RAM / Technology: DDR4 SODIMM RAM / Total Slots Qty: 2 RAM Form Factor: SO DIMM 260-pin RAM / Max Supported Size: 32 GB Optical Storage Type: None Audio Output: Realtek ALC662 2 channel High Definition audio Memory Card Reader: SD Card reader Data Link Protocol: Gigabit Ethernet Video Output Type: (1)HDMI 2.0a + (1)DisplayPort + (1) VGA video outputs Support triple independent display Integrated in CPU (Intel UHD 610/620 Graphics) Video Output Interface: Display Port, HDMI Speakers: No Speaker Power / Device Type: Power Adapter Power / Provided (W): 65 Watt Power / Voltage Required: Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC Interfaces & Connections: (1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header Front I/O Ports: (1) Power on button (1) Power LED (1) HDD LED (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (4) USB 2.0 ports (1) SD Card reader (1) Mic in (1) Headphone out Rear I/O Ports: (2) RJ45 Gigabit LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay Expansion Slots Total (Free): (1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket (WIFI pre-installed) Width: 165 Mm Depth: 200 Mm Height: 39.5 Mm Features: FORM FACTOR:Shuttle 1.3L Chassis - Memory
Cache Memory Type: Smart Cache RAM / Total Slots Qty: 2 RAM / Technology: DDR4 SODIMM RAM Form Factor: SO DIMM 260-pin RAM / Max Supported Size: 32 GB - Processor
Processor / Manufacturer: Intel Multi-Core Technology: Dual-Core Processor / Type: Celeron Processor / Clock Speed: 1.8 GHz Processor / Number: 4205U Processor / Installed Qty: 1 Cache Memory Type: Smart Cache Cache Memory Installed Size: 2 MB - Storage
Optical Storage Type: None - Expansion
Interfaces & Connections: (1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay Expansion Slots Total (Free): (1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket (WIFI pre-installed) Front I/O Ports: (1) Power on button (1) Power LED (1) HDD LED (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (4) USB 2.0 ports (1) SD Card reader (1) Mic in (1) Headphone out Rear I/O Ports: (2) RJ45 Gigabit LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 3.1 Gen2 (Celeron 4205U is Gen1) (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture - Networking
Data Link Protocol: Gigabit Ethernet - Power
Power / Device Type: Power Adapter Power / Provided (W): 65 Watt Power / Voltage Required: Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC - Video
Video Output Type: (1)HDMI 2.0a + (1)DisplayPort + (1) VGA video outputs Support triple independent display Integrated in CPU (Intel UHD 610/620 Graphics) Video Output Interface: Display Port, HDMI - Dimensions&Miscellaneous
Width: 165 Mm Depth: 200 Mm Height: 39.5 Mm - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | SHUTTLE |
|---|---|
| UNSPSC | 43211508 |
| Part# | SHT-DS10U |
| MFG Part# | DS10U |
| UPC | 887993001883 |
| RAM Form Factor | SO DIMM 260-pin |
| Cache Memory Installed Size | 2 MB |
| Processor / Installed Qty | 1 |
| Multi-Core Technology | Dual-Core |
| Processor / Number | 4205U |
| Processor / Manufacturer | Intel |
| RAM / Total Slots Qty | 2 |
| Video Output Interface | Display Port, HDMI |
| RAM / Technology | DDR4 SODIMM |
| Cache Memory Type | Smart Cache |
| Processor / Clock Speed | 1.8 GHz |
| Processor / Type | Celeron |
| Cabinet Form Factor | Slim Desktop |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Adapter |
| Audio Output | Realtek ALC662 2 channel High Definition audio |
| System Type | Personal Computer |
| Memory Card Reader | SD Card reader |
| Speakers | No Speaker |
