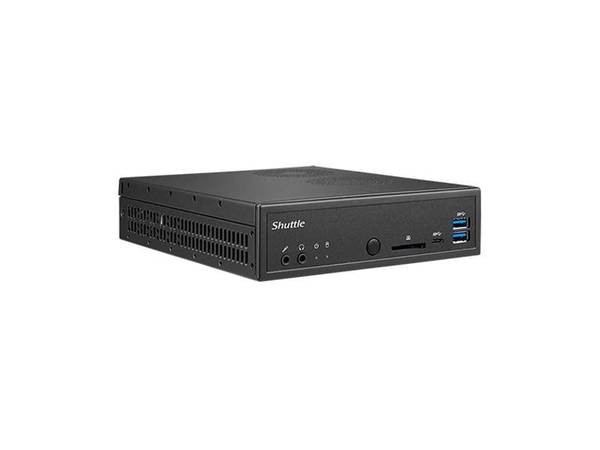

SHUTTLE COMPUTER XPC SLIM DH270 H270 CHIPSET CPU LGA1151 5992424
SKU
5992424
CA$486.14
Shuttle XPC Slim DH270 H270 Chipset, Intel Kabylake CPU, LGA1151 socket, Max. 32GB RAM, Triple Video Output
Category: Desktops
- Primary Information
System Type: Personal Computer Model: DH270 Cabinet Form Factor: Desktop Processor / Manufacturer: Intel Mainboard / Chipset Type: Intel H270 Express RAM / Technology: DDR4 RAM / Total Slots Qty: 2 RAM / Total Installed Size: 32 GB RAM Form Factor: SODIMM RAM / Max Supported Size: 64 GB Storage Controller Type: SATA 6Gb/s Audio Output: Realtek ALC662 High Definition Audio Storage Controller Type: SATA 6Gb/s Memory Card Reader: SD Card Reader Data Link Protocol: Ethernet Video Output Type: HDMI 2.0 x 1 + HDMI 1.4b x 2 Support triple independent display; 4K playback (Dual channel memory recommended); Integrated in CPU Power / Device Type: Power Adapter Power / Provided (W): 90 Watt Power / Voltage Required: 100- 240V AC Interfaces & Connections: (1) 4pin fan connector; (1) VGA(For PVG01 use); (1) SATA power w/connector; (1) Front audio header; (1) Auto power on header; (1) RS232 voltage switch Front I/O Ports: (1) USB 3.0 ports with Type C; (2) USB 3.0 ports with Type A; (1) Microphone-In; (1) Earphone-Out; (1)SD Card reader Rear I/O Ports: (2) RJ45 Gigabit LAN port; (3) HDMI port(2.0*11.4b*2); (4) USB 2.0 ports; (1) RS232; (1) RS232/RS422/RS485; (1) External 4pin header; (1) DC-in Expansion Slots Total (Free): (1) M.2 2280 Type M key socket; (1) M.2 2230 Type A,E key socket Width: 190 Mm Depth: 165 Mm Height: 43 Mm Features: Form Factor: 1.3L chassis - Memory
RAM / Total Slots Qty: 2 RAM / Technology: DDR4 RAM / Total Installed Size: 32 GB RAM Form Factor: SODIMM RAM / Max Supported Size: 64 GB - Green Product Information
EPEAT Level: Not Included Energy Star Compliant: Not Included - Processor
Processor / Manufacturer: Intel - Storage
Storage Controller Type: SATA 6Gb/s - Expansion
Interfaces & Connections: (1) 4pin fan connector; (1) VGA(For PVG01 use); (1) SATA power w/connector; (1) Front audio header; (1) Auto power on header; (1) RS232 voltage switch Expansion Slots Total (Free): (1) M.2 2280 Type M key socket; (1) M.2 2230 Type A,E key socket Front I/O Ports: (1) USB 3.0 ports with Type C; (2) USB 3.0 ports with Type A; (1) Microphone-In; (1) Earphone-Out; (1)SD Card reader Rear I/O Ports: (2) RJ45 Gigabit LAN port; (3) HDMI port(2.0*11.4b*2); (4) USB 2.0 ports; (1) RS232; (1) RS232/RS422/RS485; (1) External 4pin header; (1) DC-in - Networking
Data Link Protocol: Ethernet - Power
Power / Device Type: Power Adapter Power / Provided (W): 90 Watt Power / Voltage Required: 100- 240V AC - Video
Video Output Type: HDMI 2.0 x 1 + HDMI 1.4b x 2 Support triple independent display; 4K playback (Dual channel memory recommended); Integrated in CPU - Dimensions&Miscellaneous
Width: 190 Mm Depth: 165 Mm Height: 43 Mm - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | SHUTTLE |
|---|---|
| UNSPSC | 43211508 |
| Part# | SHT-DH270 |
| MFG Part# | DH270 |
| UPC | 887993001319 |
| EPEAT Level | Not Included |
| RAM Form Factor | SODIMM |
| RAM / Total Installed Size | 32 GB |
| Mainboard / Chipset Type | Intel H270 Express |
| Processor / Manufacturer | Intel |
| RAM / Total Slots Qty | 2 |
| Storage Controller Type | SATA 6Gb/s |
| RAM / Technology | DDR4 |
| Cabinet Form Factor | Desktop |
| Energy Star Compliant | Not Included |
| Data Link Protocol | Ethernet |
| Power / Device Type | Power Adapter |
| Audio Output | Realtek ALC662 High Definition Audio |
| System Type | Personal Computer |
| Memory Card Reader | SD Card Reader |
