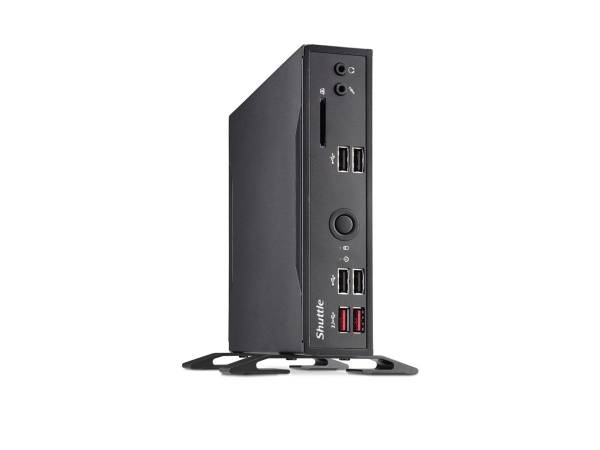

SHUTTLE DS10U3 SYSTEM - 1.3 LITER FANLESS THIN-CLIENT PC/MEDIA PLAYER, WHISKEY LAKE I3-8145U, MAX 32GB DDR4 SODIMM | 4GB, 128GB SSD, WIN 10 IOT 2021 7436810
SKU
7436810
CA$1,237.59
DS10U3 - Slim Desktop - Intel - Core i3 - 8145U - 2.1GHz - Dual-Core - 3.9GHz - DDR4 - 4GB RAM - 128GB SSD - Intel UHD Graphics 620 - Power Adapter - 65Watt - Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 - Microsoft Windows 10 IoT Enterprise LTSC 2021
Category: Desktops
- Primary Information
System Type: Personal Computer Model: DS10U3 Cabinet Form Factor: Slim Desktop Processor / Generation: Intel 8th Generation Processor / Type: Core i3 Processor / Manufacturer: Intel Multi-Core Technology: Dual-Core Processor / Clock Speed: 2.1 GHz Cache Memory Installed Size: 4 MB Max Turbo Frequency: 3.9 GHz Processor / Number: 8145U Cache Memory Installed Size: 4 MB Mainboard / Chipset Type: System on Chip RAM / Technology: DDR4 RAM / Total Slots Qty: 2 RAM / Total Installed Size: 4 GB RAM Form Factor: SODIMM RAM / Max Supported Size: 64 GB Hard Drive / Type: SSD Hard Drive Capacity / SSD: 128 GB Audio Output: Realtek ALC662 codec Memory Card Reader: SD card reader Data Link Protocol: Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 Graphics Controller: Intel UHD Graphics 620 Max Monitors Supported: 3 Operating System: Microsoft Windows 10 IoT Enterprise LTSC 2021 Power / Device Type: Power Adapter Power / Provided (W): 65 Watt Power / Voltage Required: 100~240 V AC, 50/60 Hz Front I/O Ports: USB 3.2 Gen 2;USB 2.0;Microphone input;Audio Line-out Rear I/O Ports: DisplayPort 1.2;HDMI 2.0a;D-Sub/VGA;USB 3.2 Gen 2;RJ45;Serial COM Width: 165 Mm Depth: 200 Mm Height: 39.5 Mm Weight: 1.5 Kg Security Devices: fTPM 2.0 - Memory
Cache Memory Type: Smart Cache RAM / Total Slots Qty: 2 RAM / Technology: DDR4 RAM / Total Installed Size: 4 GB RAM Form Factor: SODIMM RAM / Max Supported Size: 64 GB - Special Feature
RoHS: Y Security Devices: fTPM 2.0 COO: Inquire TAA compliance: Inquire - Green Product Information
Energy Star Compliant: Y - Processor
Processor / Generation: Intel 8th Generation Processor / Manufacturer: Intel Multi-Core Technology: Dual-Core Processor / Type: Core i3 Processor / Clock Speed: 2.1 GHz Max Turbo Frequency: 3.9 GHz Processor / Number: 8145U Cache Memory Type: Smart Cache Cache Memory Installed Size: 4 MB - Storage
Hard Drive / Type: SSD Hard Drive Capacity / SSD: 128 GB - Expansion
Front I/O Ports: USB 3.2 Gen 2;USB 2.0;Microphone input;Audio Line-out Rear I/O Ports: DisplayPort 1.2;HDMI 2.0a;D-Sub/VGA;USB 3.2 Gen 2;RJ45;Serial COM - Networking
Data Link Protocol: Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 - Power
Power / Device Type: Power Adapter Power / Provided (W): 65 Watt Power / Voltage Required: 100~240 V AC, 50/60 Hz - Video
Graphics Controller: Intel UHD Graphics 620 - Dimensions&Miscellaneous
Width: 165 Mm Depth: 200 Mm Height: 39.5 Mm Weight: 1.5 Kg - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | SHUTTLE |
|---|---|
| UNSPSC | 43211508 |
| Part# | SHT-DS1000U3-Q34142 |
| MFG Part# | DS1000U3-Q34142 |
| RAM Form Factor | SODIMM |
| RAM / Total Installed Size | 4 GB |
| Mainboard / Chipset Type | System on Chip |
| Cache Memory Installed Size | 4 MB |
| Multi-Core Technology | Dual-Core |
| Processor / Number | 8145U |
| Processor / Manufacturer | Intel |
| RAM / Total Slots Qty | 2 |
| Hard Drive Capacity / SSD | 128 GB |
| Hard Drive / Type | SSD |
| RAM / Technology | DDR4 |
| Cache Memory Type | Smart Cache |
| Max Turbo Frequency | 3.9 GHz |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Type | Core i3 |
| Cabinet Form Factor | Slim Desktop |
| Energy Star Compliant | Y |
| Data Link Protocol | Bluetooth 4.0, Gigabit Ethernet, Wi-Fi |
| Graphics Controller | Intel UHD Graphics 620 |
| Power / Device Type | Power Adapter |
| Operating System | Microsoft Windows 10 IoT Enterprise LTSC 2021 |
| Audio Output | Realtek ALC662 codec |
| System Type | Personal Computer |
| Max Monitors Supported | 3 |
| Memory Card Reader | SD card reader |
| Processor / Generation | Intel 8th Generation |
