SINGLE CHANNEL 32GB GEN 7 11841361
SKU
11841361
Category: Storage Controllers
- Primary Information

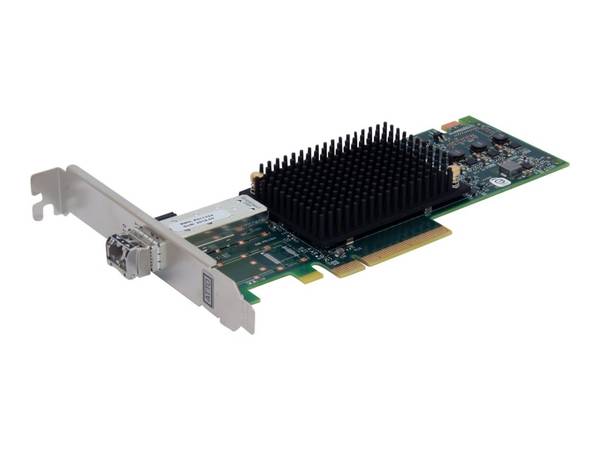

Product Description: ATTO Celerity FC-321P - host bus adapter - PCIe 4.0 x8 - 32Gb Fibre Channel Gen 7 x 1 - TAA Compliant Device Type: Host bus adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 4.0 x8 PCI Specification Revision: PCIe 4.0 Ports: 32Gb Fibre Channel Gen 7 x 1 Dimensions (WxDxH): 6.6 in x 2.7 in Data Link Protocol: 32Gb Fibre Channel Gen 7 TAA Compliant: Yes Manufacturer Warranty: 3-year warranty - General
Device Type: Host bus adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 4.0 x8 PCI Specification Revision: PCIe 4.0 - Networking
Ports: 32Gb Fibre Channel Gen 7 x 1 Connectivity Technology: Wired Data Link Protocol: 32Gb Fibre Channel Gen 7 Fibre Channel: FC-FS, FCP, FC-PI-7 Features: Auto-negotiation, trunking, load balancing, ADS, Transparent (N_Port ID Virtualization - NPIV) mode support, FDMI, Virtual Fabric mode - Expansion / Connectivity
Interfaces: 1 x 32Gb Fibre Channel - LC - x 2 - Miscellaneous
Included Accessories: Low-profile bracket, SFP+ LC transceiver, standard bracket Compliant Standards: FCC Class A certified, CSA, UL, TUV, cUL, EMC, RoHS, KCC, ICES, BSMI Class A, VCCI Class A, RCM, MSIP, MSA SFF-8431 TAA Compliant: Yes - Power
Power Consumption Operational: 9.8 Watt - Software / System Requirements
Software Included: ATTO ConfigTool - Dimensions & Weight
Depth: 6.6 in Height: 2.7 in - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | ATTO TECHNOLOGY |
|---|---|
| UNSPSC | 43201404 |
| Part# | AOT-CTFC-321P-000 |
| MFG Part# | CTFC-321P-000 |
| UPC | 603175009375 |
| Device Type | Host bus adapter |
| Connectivity Technology | Wired |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 32Gb Fibre Channel Gen 7 |
