SINGLE CHANNEL X8 PCIE 3. 11841275
SKU
11841275
Category: Network Adapters
- Primary Information

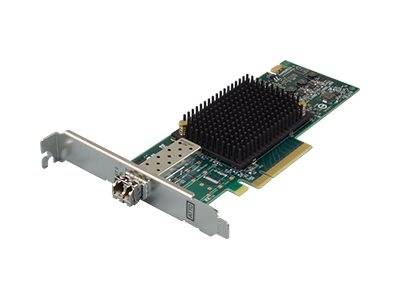

Product Description: ATTO Celerity FC-161P - host bus adapter - PCIe 3.0 x8 - 16Gb Fibre Channel x 1 Device Type: Host bus adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 3.0 x8 PCI Specification Revision: PCIe 3.0 Ports: 16Gb Fibre Channel x 1 Dimensions (WxDxH): 6.6 in x 4 in Data Link Protocol: 16Gb Fibre Channel System Requirements: Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, VMware ESXi 5 Manufacturer Warranty: 3-year warranty - General
Device Type: Host bus adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 3.0 x8 PCI Specification Revision: PCIe 3.0 - Networking
Ports: 16Gb Fibre Channel x 1 Connectivity Technology: Wired Data Link Protocol: 16Gb Fibre Channel Fibre Channel: FC-AL, FC-AL-2, FC-FLA, FC-FS, FC-PLDA, FCP Status Indicators: Port status, port transmission speed Features: Full duplex capability, firmware upgradable, ADS - Expansion / Connectivity
Expansion Slots: 1 (total) / 0 (free) x SFP+ Interfaces: 1 x 16Gb Fibre Channel - LC - x 2 - Miscellaneous
Compliant Standards: RoHS - Power
Power Consumption Operational: 9.6 Watt - Software / System Requirements
Software Included: ATTO ConfigTool OS Required: Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, VMware ESXi 5 - Dimensions & Weight
Depth: 6.6 in Height: 4 in - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | ATTO TECHNOLOGY |
|---|---|
| UNSPSC | 43201404 |
| Part# | AOT-CTFC-161P-000 |
| MFG Part# | CTFC-161P-000 |
| UPC | 603175008712 |
| Device Type | Host bus adapter |
| Connectivity Technology | Wired |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 16Gb Fibre Channel |
