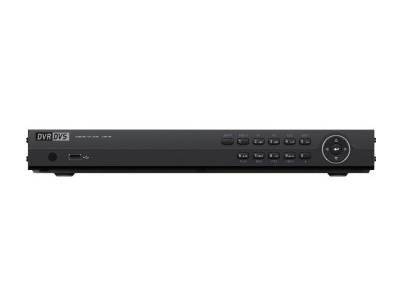

SMARTEYES 16CH 5MP/8MP TVI DVR WITH ACUSENSE, 2-SATA 7293571
SKU
7293571
Category: DVRs & Security Storage
- Primary Information
Product Description: Galaxy Platinum AR336-16A - standalone DVR - 16 channels Device Type: Standalone DVR - 16 channels - networked IP Cameras Supported: 16 Frame Rate: 15 fps, 18 fps, 20 fps, 25 fps, 30 fps, 50 fps, 60 fps (record) / 30 fps, 60 fps (playback) Compression Format: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, G.711u TV System: NTSC/PAL Hard Drive(s) Supported: Quantity: 2 - total capacity: 20 TB Voltage: 12 V Dimensions (WxDxH) - without HDD: 15 in x 12.6 in x 1.9 in Weight: 4.63 lbs - General
Device Type: Standalone DVR Video Channels: 16 IP Cameras Supported: 16 TV System: NTSC/PAL Compression Format: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, G.711u - Security DVR
Frame Rate (Playback): 30 fps, 60 fps Frame Rate (Record): 15 fps, 18 fps, 20 fps, 25 fps, 30 fps, 50 fps, 60 fps Video Recording Resolution: 8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280x720, 4CIF, CIF Playback Search: Smart search Networked: Yes Features: Motion Detection 2.0, Perimeter Protection, High Definition Transport Video Interface (HDTVI), Analog High Definition (AHD), intrusion detection, Line Crossing Detection, configurable output bandwidth limit, dual stream support, up to 128 remote connections, Wi-Fi via USB dongle support - Hard Drive
Quantity Supported: 2 Interface: Serial ATA Supported Max Total Capacity: 20 TB - Networking
DDNS Support: Yes Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Supported Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, UPnP, HTTPS Features: iSCSI service, ONVIF support - Connections
Video Input Ports: BNC x 16 Video Input Signal Level: 1.0Vp-p 75 Ohm Video Output Ports: HDMI x 1, VGA x 1, BNC x 1 Video Output Signal Level: 1.0Vp-p 75 Ohm Audio Input Ports: RCA x 1 Audio Output Ports: RCA x 1 Network Port: 10/100/1000Base-T Other Ports: Serial RS-485 x 1, USB 2.0 x1, USB 3.0 x 1 - Power
Voltage: 12 V Power Consumption: 19 Watt Power Consumption Details: Without HDD - Dimensions & Weight
Width: 15 in Depth: 12.6 in Height: 1.9 in Weight: 4.63 lbs Comments: Without HDD - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 52161516 |
| Part# | SMR-AR336-16A |
| MFG Part# | AR336-16A |
| Device Type | Standalone DVR |
