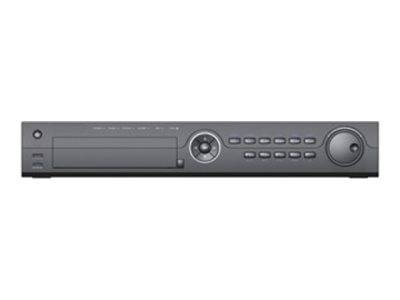

SMARTEYES 16CH 5MP/8MP TVI DVR WITH ACUSENSE, 4-SATA 7293572
SKU
7293572
Category: DVRs & Security Storage
- Primary Information
Product Description: Galaxy Platinum AR536-16 - standalone DVR - 16 channels Device Type: Standalone DVR - 16 channels - networked IP Cameras Supported: 16 Frame Rate: 8 fps, 12 fps, 15 fps, 18 fps, 30 fps (NTSC), 25 fps (PAL) Compression Format: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, G.711u TV System: NTSC/PAL Image Resolution: 1920x1080, 1280x720 Hard Drive(s) Supported: Quantity: 4 - total capacity: 12 TB Voltage: 100 - 240 V Dimensions (WxDxH) - without HDD: 17.5 in x 15.7 in x 2.8 in Weight: 11.02 lbs - General
Device Type: Standalone DVR Video Channels: 16 IP Cameras Supported: 16 TV System: NTSC/PAL Image Resolution: 1920x1080, 1280x720 Compression Format: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, G.711u - Security DVR
Frame Rate (Record): 8 fps, 12 fps, 15 fps, 18 fps, 30 fps (NTSC), 25 fps (PAL) Video Recording Resolution: 1920x1080, 1280x720, 8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 4CIF, CIF Networked: Yes Features: RAID 0 support, RAID 1 support, RAID 5 support, RAID 6 support, RAID 10 support, 2-way audio communication, maximum throughput 320 Mbps, up to 128 users access - Hard Drive
Quantity Supported: 4 Interface: Serial ATA Supported Max Total Capacity: 12 TB - Networking
DDNS Support: Yes Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Supported Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, UPnP, HTTPS, SNMP Features: ONVIF support, Accelerated iSCSI - Connections
Video Input Ports: BNC x 2 Video Input Signal Level: 1.0Vp-p 75 Ohm Video Output Ports: HDMI x 2, VGA x 1, BNC x 1 Video Output Signal Level: 1.0Vp-p 75 Ohm Audio Input Ports: RCA x 4 Audio Output Ports: RCA x 1 Alarm Ports: Alarm input x 1, alarm output x 1 Camera Control Interface (PTZ): RS-485 Network Port: 10/100/1000Base-T x 2 Other Ports: eSATA x 1, USB 2.0 x 2, USB 3.0 x 1, serial RS-232 x 1 - Power
Voltage: 100 - 240 V Frequency: 50 - 60 Hz Power Consumption: 35 Watt Power Consumption Details: Without HDD - Dimensions & Weight
Width: 17.5 in Depth: 15.7 in Height: 2.8 in Weight: 11.02 lbs Comments: Without HDD - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 52161516 |
| Part# | SMR-AR536-16 |
| MFG Part# | AR536-16 |
| Device Type | Standalone DVR |
