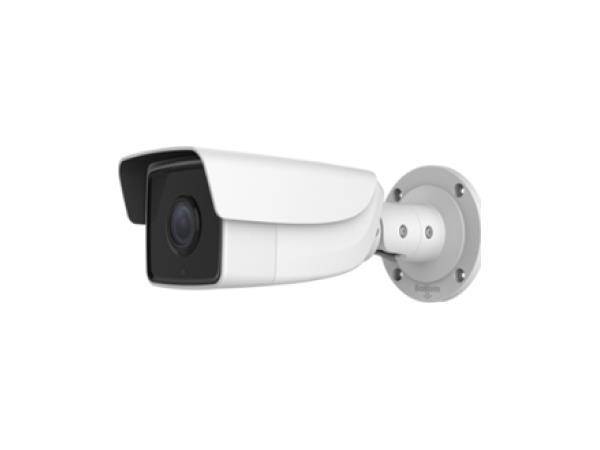

SMARTEYES 4MP BULLET IP CAMERA WITH ACUSENSE 7293420
SKU
7293420
CA$156.34
NC324G2-XB-8 - IP Bullet Camera - CMOS - 4MP - 8 mm - 30Frames per second - 256GB
Category: PC & Network Cameras
- Primary Information
Product Description: Galaxy Platinum NC324G2-XB-8 - network surveillance camera - bullet Device Type: Network surveillance camera - fixed - bullet - dust resistant / water resistant Dimensions (WxDxH): 4.1 in x 11.5 in x 4.1 in Weight: 2.36 lbs Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2688 x 1520 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: Progressive Scan CMOS - 1/3" - 4 MP Minimum Illumination: 0.005 lux - color - F1.6 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 8 mm Lens Mounting: M12 mount Focus Adjustment: Fixed focus Lens Iris: F/1.6 Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 90 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Features: Wide Dynamic Range (WDR), face detection, intrusion detection, tripwire detection, Vehicle Detection, human detection, slow shutter, ICR filter, manual 360° rotation, Constant Bitrate (CBR), Variable Bitrate (VBR), Scalable Video Coding (SVC), Region of Interest (ROI), ONVIF (Profile G) support, ONVIF (Profile S) support, password protection, complicated password, 802.1x authentication, HTTPs encryption, IP address filtering, security audit log, digest authentication, WSSE, NAS-Ready, Automatic Network Replenishment (ANR), image mirror, Privacy Mask Function, saturation control, brightness control, Backlight Compensation (BLC), Highlight Compensation (HLC), 3D digital noise reduction (DNR), contrast control, sharpness control, Gain Control, white balance, reset button, digital image rotation, Line Crossing Detection, video tampering alarm, anti-flicker, heartbeat, Pixel Counter Support, password reset via e-mail, aluminum housing Environmental Parameters (operating): -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Form Factor: Bullet Connectivity Technology: Wired Width: 4.1 in Depth: 11.5 in Height: 4.1 in Weight: 2.36 lbs - Camera
Type: Color - Day&Night - fixed - dust resistant / water resistant Digital Video Format: H.265+, H.264+, H.264, H.265 Max Digital Video Resolution: 2688 x 1520 Motion Detection: Yes Exposure Range: 1/3 sec - 1/100000 sec Minimum Illumination: 0.005 lux - color - F1.6 - AGC on ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 197 ft Video Capture: 2688 x 1520 @ 25/30 fps ¦ 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 25/30 fps ¦ 640 x 480 @ 25/30 fps ¦ 640 x 360 @ 25/30 fps Features: Wide Dynamic Range (WDR), face detection, intrusion detection, tripwire detection, Vehicle Detection, human detection, slow shutter, ICR filter, manual 360° rotation, Constant Bitrate (CBR), Variable Bitrate (VBR), Scalable Video Coding (SVC), Region of Interest (ROI), ONVIF (Profile G) support, ONVIF (Profile S) support, password protection, complicated password, 802.1x authentication, HTTPs encryption, IP address filtering, security audit log, digest authentication, WSSE, NAS-Ready, Automatic Network Replenishment (ANR), image mirror, Privacy Mask Function, saturation control, brightness control, Backlight Compensation (BLC), Highlight Compensation (HLC), 3D digital noise reduction (DNR), contrast control, sharpness control, Gain Control, white balance, reset button, digital image rotation, Line Crossing Detection, video tampering alarm, anti-flicker, heartbeat, Pixel Counter Support, password reset via e-mail, aluminum housing - Image Sensor
Type: 4 MP Progressive Scan CMOS 1/3" - Lens Construction
Type: M12 mount - fixed focal Focal Length: 8 mm Lens Iris: F/1.6 Focus Adjustment: Fixed focus - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 90 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QOS, IPv6, UDP, Bonjour, SSL, TLS, PPPoE, SMB, CIFS - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.1, TLS 1.2 - Miscellaneous
Compliant Standards: IEC 60529 IP67, IEEE 802.3af Class 3, FCC 47 CFR Part 15 Subpart B, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011+A1:2014, RCM, EMC, AS/NZS CISPR 32:2015, ICES-003 issue 6, IC, KC, KN32:2015, KN35:2015, UL 60950-1, CB, IEC 60950-1:2005 + Am1:2009 + Am2:2013, LVD, EN 60950-1:2005+Am1:2009+Am 2:2013, REACH 1907/2006/CE, RoHS 2011/65/EU, WEEE 2012/19/EU - Power
Power Requirements: DC 12 V / PoE - Dimensions & Weight (Shipping)
Shipping Width: 6.1 in Shipping Depth: 15.2 in Shipping Height: 6.1 in Shipping Weight: 3.5 lbs - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-NC324G2-XB-8 |
| MFG Part# | NC324G2-XB-8 |
| Max Resolution | 2688 x 1520 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | M12 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Format | H.264, H.264+, H.265, H.265+ |
| Focal Length | 8 mm |
| Encryption Algorithm | TLS 1.1, TLS 1.2 |
