SMARTEYES 5MP DOME TVI CAMERA 7293502
SKU
7293502
Category: PC & Network Cameras
- Primary Information

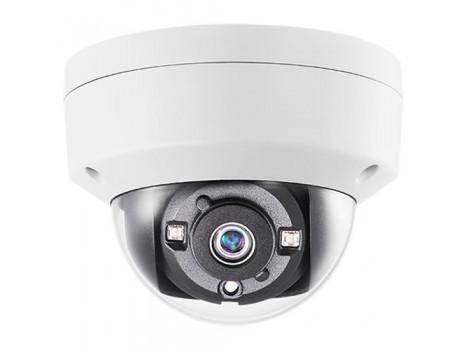

Product Description: Galaxy Platinum AC326-OD-3.6 - surveillance camera - dome Device Type: Surveillance camera - fixed - dome - vandal / weatherproof Dimensions (WxDxH): 4.4 in x 4.4 in x 3.2 in Weight: 12.34 oz Connectivity Technology: Wired Camera: Color - Day&Night - NTSC, PAL Max Resolution: 2560 x 1944 Frame Rate (max): 20 frames per second Optical Sensor Type: CMOS - 1/2.7" - 5 MP Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 3.6 mm Lens Mounting: M12 mount Focus Adjustment: Fixed focus Lens Iris: F/1.2 Panning Range (degree): 0 to 355 Tilting Range (degree): 0 to 75 Interfaces: HD-TVI Voltage: DC 12 V Features: Smart IR, ICR filter, Automatic Gain Control (AGC), auto white balance, manual white balance, Backlight Compensation (BLC), brightness control, sharpness control, digital noise reduction, image mirror, EXIR 2.0 LEDs, 2D digital noise reduction (DNR), Digital Wide Dynamic Range (D-WDR), manual 355° rotation, metal housing Environmental Parameters (operating): -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity - General
Device Type: Surveillance camera Form Factor: Dome Connectivity Technology: Wired Width: 4.4 in Depth: 4.4 in Height: 3.2 in Weight: 12.34 oz - Camera
Type: Color - Day&Night - fixed - vandal / weatherproof Video Format: NTSC, PAL Max Digital Video Resolution: 2560 x 1944 Exposure Range: 1/25 sec - 1/50000 sec Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Infrared LEDs: 2 Infrared Distance: 66 ft Digital Video Capture Resolution: 2560 x 1944 Frame Rate (max): 20 frames per second Features: Smart IR, ICR filter, Automatic Gain Control (AGC), auto white balance, manual white balance, Backlight Compensation (BLC), brightness control, sharpness control, digital noise reduction, image mirror, EXIR 2.0 LEDs, 2D digital noise reduction (DNR), Digital Wide Dynamic Range (D-WDR), manual 355° rotation, metal housing - Image Sensor
Type: 5 MP CMOS 1/2.7" Effective Pixels: 2560 x 1944 - Lens Construction
Type: M12 mount - fixed focal Focal Length: 3.6 mm Lens Iris: F/1.2 Focus Adjustment: Fixed focus Horizontal Field of View (degree): 80.1 - Panning
Range (degree): 0 to 355 - Tilting
Range (degree): 0 to 75 - Interfaces
Video: HD-TVI - Expansion / Connectivity
Ports: Composite video/AHD/TVI/CVI/CVBS - Miscellaneous
Compliant Standards: IP67, IK10 - Power
Power Requirements: DC 12 V - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-AC326-OD-3.6 |
| MFG Part# | AC326-OD-3.6 |
| Max Resolution | 2560 x 1944 |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | M12 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Capture Resolution | 2560 x 1944 |
| Focal Length | 3.6 mm |
