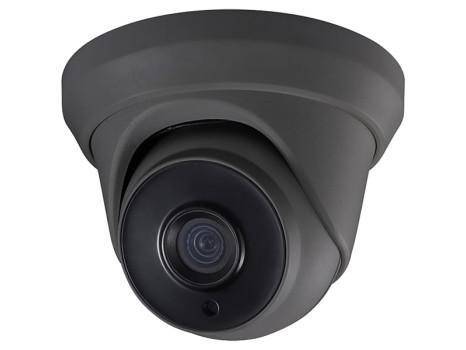

SMARTEYES 5MP TURRET TVI CAMERA 7293498
SKU
7293498
CA$60.49
Category: PC & Network Cameras
- Primary Information
Product Description: Galaxy Platinum AC326-FD4-G-2.8 - surveillance camera - turret Device Type: Surveillance camera - fixed - turret - weatherproof Dimensions (WxDxH): 4.3 in x 4.3 in x 3.7 in Weight: 12.34 oz Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2592 x 1944 Frame Rate (max): 20 frames per second Optical Sensor Type: CMOS 5 MP Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 2.8 mm Lens Mounting: M12 mount Focus Adjustment: Fixed focus Lens Iris: F/1.2 Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 75 Interfaces: TVI Voltage: DC 12 V Features: Internal synchronization, manual 360° rotation, Automatic Gain Control (AGC), auto white balance, manual white balance, Backlight Compensation (BLC), brightness control, sharpness control, digital noise reduction, image mirror, Smart IR, Defect Pixel Correction (DPC) Environmental Parameters (operating): -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity - General
Device Type: Surveillance camera Form Factor: Turret Connectivity Technology: Wired Width: 4.3 in Depth: 4.3 in Height: 3.7 in Weight: 12.34 oz - Camera
Type: Color - Day&Night - fixed - weatherproof Max Digital Video Resolution: 2592 x 1944 Exposure Range: 1/30 sec - 1/50000 sec Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 131 ft Digital Video Capture Resolution: 2592 x 1944 Frame Rate (max): 20 frames per second Features: Internal synchronization, manual 360° rotation, Automatic Gain Control (AGC), auto white balance, manual white balance, Backlight Compensation (BLC), brightness control, sharpness control, digital noise reduction, image mirror, Smart IR, Defect Pixel Correction (DPC) - Image Sensor
Type: 5 MP CMOS Effective Pixels: 2592 x 1944 - Lens Construction
Type: M12 mount - fixed focal Focal Length: 2.8 mm Lens Iris: F/1.2 Focus Adjustment: Fixed focus Horizontal Field of View (degree): 86.5 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 75 - Interfaces
Video: TVI - Expansion / Connectivity
Ports: TVI - Miscellaneous
Compliant Standards: IP67 - Power
Power Requirements: DC 12 V - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-AC326-FD4-G-2.8 |
| MFG Part# | AC326-FD4-G-2.8 |
| Max Resolution | 2592 x 1944 |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | M12 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Capture Resolution | 2592 x 1944 |
| Focal Length | 2.8 mm |
