SMARTEYES 8-PORT 10/100MBPS POE SWITCH, 1-PORT 10/100MBPS UPLINK 7293630

SKU
7293630
main product photo
CA$93.39
8-PORT 10/100MBPS POE SWITCH, 1-PORT 10/100MBPS UPLINK





buy now pay later
Category: Hubs & Switches
  • Primary Information

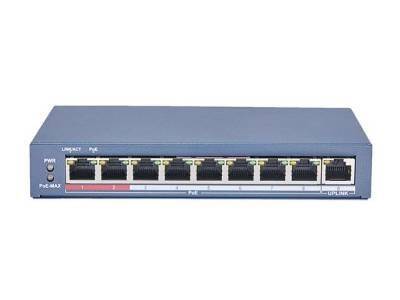

    Product Description: Hikvision DS-3E0109P-E - switch - 8 ports - unmanaged
    Device Type: Switch - 8 ports - unmanaged
    Subtype: Fast Ethernet
    Ports: 8 x 10/100 (PoE+) + 1 x 10/100 (uplink)
    Power Over Ethernet (PoE): PoE+
    PoE Budget: 123 W
    Performance: Switching capacity: 1.8 Gbps ¦ Forwarding performance: 1.34 Mpps
    MAC Address Table Size: 4K entries
    Features: Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, metal housing, 4KV Surge protection
    Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
    Dimensions (WxDxH): 9.3 in x 4.1 in x 1.1 in
    Weight: 20.1 oz
  • General
    Device Type: Switch - 8 ports - unmanaged
    Enclosure Type: Desktop
    Subtype: Fast Ethernet
    Ports: 8 x 10/100 (PoE+) + 1 x 10/100 (uplink)
    Power Over Ethernet (PoE): PoE+
    PoE Budget: 123 W
    Performance: Switching capacity: 1.8 Gbps ¦ Forwarding performance: 1.34 Mpps
    MAC Address Table Size: 4K entries
    Features: Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, metal housing, 4KV Surge protection
    Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
    Status Indicators: Power, PoE, link/activity
  • Expansion / Connectivity
    Interfaces: 8 x 100Base-TX RJ-45 PoE+ ¦ 1 x 100Base-TX RJ-45 uplink
  • Power
    Power Device: Internal power supply
    Power Consumption Operational: 127 Watt
  • Miscellaneous
    Compliant Standards: Plug and Play
  • Dimensions & Weight
    Width: 9.3 in
    Depth: 4.1 in
    Height: 1.1 in
    Weight: 20.1 oz
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 10 - 90% (non-condensing)
    Min Storage Temperature: -40 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 5 - 95% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
More Information
BRANDS GALAXY SECURITY
UNSPSC 43222612
Part# SMR-DS-3E0109P-E
MFG Part# DS-3E0109P-E
Device Type Switch - 8 ports - unmanaged
Enclosure Type Desktop
