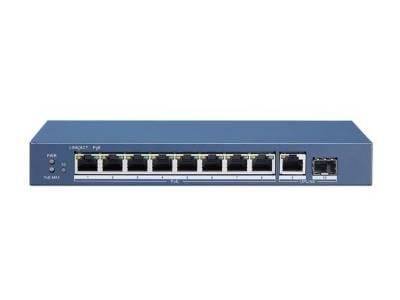

SMARTEYES 8-PORT GIGABIT POE SWITCH, 1-PORT GIGABIT UPLINK, 1-PORT GIGABIT SFP 7293631
SKU
7293631
CA$144.80
8-PORT GIGABIT POE SWITCH, 1-PORT GIGABIT UPLINK, 1-PORT GIGABIT SFP
Category: Hubs & Switches
- Primary Information
Product Description: Galaxy Platinum DS-3E0510P-E - switch - 10 ports Device Type: Switch - 10 ports Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP Power Over Ethernet (PoE): PoE PoE Budget: 110 W Performance: Switching capacity: 20 Gbps ¦ Packet forwarding rate: 14.88 Mbps MAC Address Table Size: 8K entries Features: Store and forward, metal housing, 6KV Surge protection Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x Power: AC 100-240 V (50/60 Hz) 4 A Dimensions (WxDxH): 8.6 in x 4.3 in x 1.1 in Weight: 21.16 oz - General
Device Type: Switch - 10 ports Enclosure Type: Desktop Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP Power Over Ethernet (PoE): PoE PoE Budget: 110 W Performance: Switching capacity: 20 Gbps ¦ Packet forwarding rate: 14.88 Mbps MAC Address Table Size: 8K entries Features: Store and forward, metal housing, 6KV Surge protection Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x - Expansion / Connectivity
Interfaces: 8 x 1000Base-T RJ-45 PoE - 30 W ¦ 1 x 1000Base-T RJ-45 ¦ 1 x Gigabit LAN SFP - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) Electric Current Required: 4 A Power Consumption Operational: 250 Watt - Miscellaneous
Compliant Standards: Plug and Play, UL, CB, EMC, IC, FCC, RoHS, WEEE, REACH, LVD, ANSI C63.4, RCM, UL 62368-1, 2011/65/EU, 2012/19/EU, EN 50130-4:2011+A1:2014, IEC 62368-1: 2014, 47 CFR Part 15 Class B, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2, EN 61000-3-3:2013+A1: 2019, ICES-003 Issue 11, EN 62368-1:2014+A11:2021 - Dimensions & Weight
Width: 8.6 in Depth: 4.3 in Height: 1.1 in Weight: 21.16 oz - Dimensions & Weight (Shipping)
Shipping Weight: 3.09 lbs - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 131 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F Humidity Range Storage: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 43222612 |
| Part# | SMR-DS-3E0510P-E |
| MFG Part# | DS-3E0510P-E |
| Device Type | Switch - 10 ports |
| Enclosure Type | Desktop |
