SMARTEYES 8CH 5MP/8MP TVI DVR WITH ACUSENSE, 1-SATA 7293570
SKU
7293570
Category: DVRs & Security Storage
- Primary Information

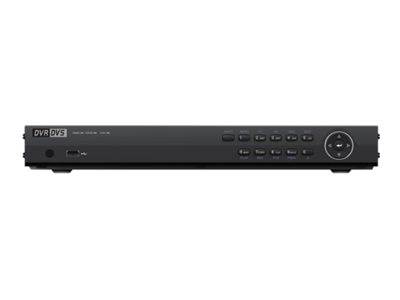

Product Description: Galaxy Platinum AR336-8E - standalone DVR - 8 channels Device Type: Standalone DVR - 8 channels - networked IP Cameras Supported: 8 Frame Rate: 15 fps, 18 fps, 20 fps, 25 fps, 30 fps, 50 fps, 60 fps (record) / 30 fps, 60 fps (playback) Compression Format: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, G.711u TV System: NTSC/PAL Hard Drive(s) Supported: Quantity: 1 - total capacity: 10 TB Voltage: 12 V Dimensions (WxDxH) - without HDD: 15 in x 12.6 in x 1.9 in Weight: 3.92 lbs - General
Device Type: Standalone DVR Video Channels: 8 IP Cameras Supported: 8 TV System: NTSC/PAL Compression Format: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264, G.711u - Security DVR
Frame Rate (Playback): 30 fps, 60 fps Frame Rate (Record): 15 fps, 18 fps, 20 fps, 25 fps, 30 fps, 50 fps, 60 fps Video Recording Resolution: 8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280x720, 4CIF, CIF Playback Search: Smart search Networked: Yes Features: Acusense technology, Motion Detection 2.0, Perimeter Protection, Analog High Definition (AHD), dual stream support, Wi-Fi via USB dongle support, Line Crossing Detection, intrusion detection, Video Content Analytics (VCA), configurable output bandwidth limit - Hard Drive
Quantity Supported: 1 Interface: Serial ATA Supported Max Total Capacity: 10 TB - Networking
DDNS Support: Yes Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Supported Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, UPnP, HTTPS Features: iSCSI service, ONVIF support - Connections
Video Input Ports: BNC x 8 Video Input Signal Level: 2.0Vp-p 1 kOhm Video Output Ports: HDMI x 1, VGA x 1, BNC x 1 Video Output Signal Level: 2.0Vp-p 1 kOhm Audio Input Ports: RCA x 1 Audio Output Ports: RCA x 1 Alarm Ports: Alarm input x 8, alarm output x 4 Network Port: 10/100/1000Base-T Other Ports: Serial RS-485 x 1, USB 2.0 x1, USB 3.0 x 1 - Power
Voltage: 12 V Power Consumption: 15 Watt Power Consumption Details: Without HDD - Dimensions & Weight
Width: 15 in Depth: 12.6 in Height: 1.9 in Weight: 3.92 lbs Comments: Without HDD - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 52161516 |
| Part# | SMR-AR336-8E |
| MFG Part# | AR336-8E |
| Device Type | Standalone DVR |
