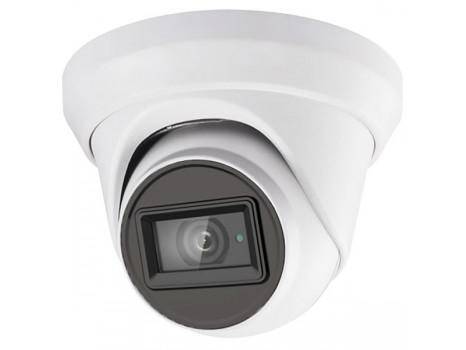

SMARTEYES 8MP TURRET TVI CAMERA 7293512
SKU
7293512
CA$100.00
Category: PC & Network Cameras
- Primary Information
Product Description: Galaxy Platinum AC328-FD4-2.8 - surveillance camera - turret Device Type: Surveillance camera - fixed - turret - weather resistant Dimensions (WxDxH): 4.3 in x 4.3 in x 3.6 in Weight: 11.29 oz Connectivity Technology: Wired Camera: Color - Day&Night - NTSC, PAL Max Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Video Modes: 2160p Optical Sensor Type: CMOS 8.3 MP Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 2.8 mm Lens Mounting: M16 mount Focus Adjustment: Fixed focus Lens Iris: F/1.2 Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 75 Interfaces: CVBS, TVI, CVI, AHD Voltage: DC 12 V Features: EXIR 2.0 LEDs, Smart IR, manual 360° rotation, auto white balance, manual white balance, Backlight Compensation (BLC), Automatic Gain Control (AGC), Digital Wide Dynamic Range (D-WDR), brightness control, sharpness control, digital noise reduction, image mirror, metal housing Environmental Parameters (operating): -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity - General
Device Type: Surveillance camera Form Factor: Turret Connectivity Technology: Wired Width: 4.3 in Depth: 4.3 in Height: 3.6 in Weight: 11.29 oz - Camera
Type: Color - Day&Night - fixed - weather resistant Video Format: NTSC, PAL Max Digital Video Resolution: 3840 x 2160 Video Modes: 2160p Exposure Range: 1/15 sec - 1/50000 sec Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 98 ft Digital Video Capture Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Features: EXIR 2.0 LEDs, Smart IR, manual 360° rotation, auto white balance, manual white balance, Backlight Compensation (BLC), Automatic Gain Control (AGC), Digital Wide Dynamic Range (D-WDR), brightness control, sharpness control, digital noise reduction, image mirror, metal housing - Image Sensor
Type: 8.3 MP CMOS - Lens Construction
Type: M16 mount - fixed focal Focal Length: 2.8 mm Lens Iris: F/1.2 Focus Adjustment: Fixed focus Horizontal Field of View (degree): 102.2 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 75 - Interfaces
Video: CVBS, TVI, CVI, AHD - Expansion / Connectivity
Ports: Video output - Miscellaneous
Compliant Standards: IP67 - Power
Power Requirements: DC 12 V - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-AC328-FD4-2.8 |
| MFG Part# | AC328-FD4-2.8 |
| Max Resolution | 3840 x 2160 |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | M16 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Capture Resolution | 3840 x 2160 |
| Focal Length | 2.8 mm |
