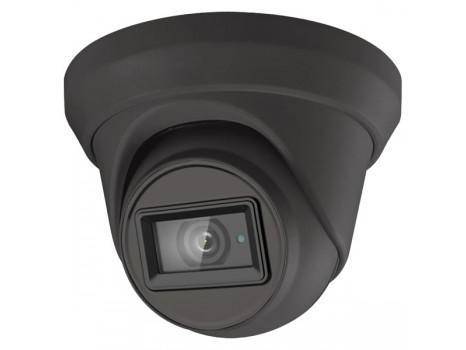

SMARTEYES 8MP TURRET TVI CAMERA 7293515
SKU
7293515
CA$70.30
Category: PC & Network Cameras
- Primary Information
Product Description: Galaxy Platinum AC328-FD4--G-3.6 - surveillance camera - turret Device Type: Surveillance camera - fixed - turret - weatherproof Dimensions (WxDxH): 4.3 in x 4.3 in x 3.6 in Weight: 11.29 oz Connectivity Technology: Wired Camera: Color - Day&Night - NTSC, PAL Max Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Optical Sensor Type: Progressive Scan CMOS 8.3 MP Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Focal Length Control: Fixed focal Focal Length: 3.6 mm Lens Mounting: M16 mount Focus Adjustment: Fixed focus Lens Iris: F/1.2 Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 75 Interfaces: CVBS, TVI, CVI, AHD Voltage: DC 12 V Features: Infrared cut filter, manual 360° rotation, EXIR 2.0 LEDs, auto white balance, manual white balance, Backlight Compensation (BLC), Automatic Gain Control (AGC), brightness control, sharpness control, digital noise reduction, image mirror, Smart IR, metal housing, Digital Wide Dynamic Range (D-WDR) Environmental Parameters (operating): -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity - General
Device Type: Surveillance camera Form Factor: Turret Connectivity Technology: Wired Width: 4.3 in Depth: 4.3 in Height: 3.6 in Weight: 11.29 oz - Camera
Type: Color - Day&Night - fixed - weatherproof Video Format: NTSC, PAL Max Digital Video Resolution: 3840 x 2160 Exposure Range: 1/12.5 sec - 1/50000 sec Minimum Illumination: 0.01 lux - color - F1.2 - AGC on ¦ 0 lux - IR Infrared LEDs: Yes Infrared Distance: 98 ft Digital Video Capture Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Features: Infrared cut filter, manual 360° rotation, EXIR 2.0 LEDs, auto white balance, manual white balance, Backlight Compensation (BLC), Automatic Gain Control (AGC), brightness control, sharpness control, digital noise reduction, image mirror, Smart IR, metal housing, Digital Wide Dynamic Range (D-WDR) - Image Sensor
Type: 8.3 MP Progressive Scan CMOS - Lens Construction
Type: M16 mount - fixed focal Focal Length: 3.6 mm Lens Iris: F/1.2 Focus Adjustment: Fixed focus Horizontal Field of View (degree): 102.2 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 75 - Interfaces
Video: CVBS, TVI, CVI, AHD - Expansion / Connectivity
Ports: Composite video/AHD/TVI/CVI/CVBS - Miscellaneous
Compliant Standards: IP67 - Power
Power Requirements: DC 12 V - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GALAXY SECURITY |
|---|---|
| UNSPSC | 46171610 |
| Part# | SMR-AC328-FD4--G-3.6 |
| MFG Part# | AC328-FD4--G-3.6 |
| Max Resolution | 3840 x 2160 |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | M16 mount - fixed focal |
| Focus Adjustment | Fixed focus |
| Digital Video Capture Resolution | 3840 x 2160 |
| Focal Length | 3.6 mm |
