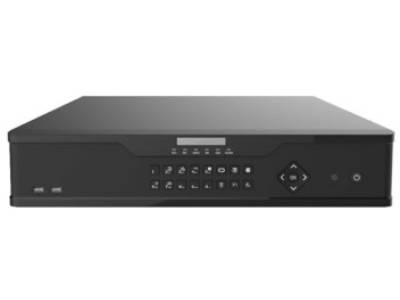

SMARTEYES GALAXY PRO 64CH 4K AI NVR WITHOUT POE, 8 SATA WITH RAID (PEOPLE COUNTING & HUMAN & VEHICLE DETECTION BY CAMERA) 7294363

SKU
7294363
CA$2,761.20
GALAXY PRO 64CH 4K AI NVR WITHOUT POE, 8 SATA WITH RAID (PEOPLE COUNTING & HUMAN & VEHICLE DETECTION BY CAMERA)





buy now pay later
  • Primary Information
    Product Description: Galaxy Rro SR-64NX-I8 - standalone NVR - 64 channels
    Device Type: NVR - 64 channels - networked
    IP Cameras Supported: 64
    Frame Rate: 30 fps (record) / 60 fps (playback)
    Compression Format: G.711A, G.711u, Ultra265, H.265, H.264
    Image Resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768, 1600x1200
    Hard Drive(s) Supported: Quantity: 8 - total capacity: 80 TB
    Voltage: 100 - 240 V
    Dimensions (WxDxH) - without HDD: 17.4 in x 16.8 in x 3.5 in
    Weight: 12.57 lbs
  • General
    Device Type: NVR
    Video Channels: 64
    IP Cameras Supported: 64
    Audio Channels: 1
    Image Resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768, 1600x1200
    Compression Format: G.711A, G.711u, Ultra265, H.265, H.264
    Compliant Standards: FCC, UL, RoHS, WEEE, EN 55032:2015, EN 61000-3-3:2013, EN IEC 61000-3-2:2019, EN 55035:2017, FCC Part 15 Subpart B
  • Security DVR
    Frame Rate (Playback): 60 fps
    Frame Rate (Record): 30 fps
    Video Recording Resolution: 12 Megapixels, 8 Megapixels, 6 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280x960, 1280x720, D1, 2CIF, CIF
    Display Modes: Live view, full screen, 4 split screens, 6 split screens, 8 split screens, 9 split screens, 16 split screens, 25 split screens, 36 split screens, 64 split screens
    Playback Search: Snapshot, behavior search, alarm, date/time
    Record Events: Motion detection, scheduled, manual, alarm, continuous, vehicle detection, line crossing detection
    Networked: Yes
    Features: 2-way audio communication, up to 128 remote connections, 16-channel synchronized playback, Line Crossing Detection, enter/leave area detection, defocus detection, scene change detection, object left detection, object removed detection, auto tracking, vehicle detection, people counting, crowd detection, video loss detection, audio detection, human detection, RAID 0 support, RAID 1 support, RAID 5 support, RAID 6 support, RAID 10 support
  • Hard Drive
    Quantity Supported: 8
    Interface: Serial ATA
    Supported Max Total Capacity: 80 TB
  • Networking
    Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
    Supported Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP
    Features: ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, Automatic Network Replenishment (ANR)
  • System Requirements
    Operating Systems: Windows
  • Connections
    Video Output Ports: HDMI x 2, VGA x 1
    Audio Input Ports: RCA x 1
    Audio Output Ports: RCA x 1
    Alarm Ports: Alarm input x 16, alarm output x 4
    Network Port: 10/100/1000Base-T x 2
    Other Ports: eSATA x 1, USB 2.0 x 2, USB 3.0 x 1, serial RS-232 x 1, serial RS-485 x 1
  • Power
    Voltage: 100 - 240 V
    Power Consumption: 25 Watt
    Power Consumption Details: Without HDD
    Redundant Power Supply: Optional
  • Dimensions & Weight
    Width: 17.4 in
    Depth: 16.8 in
    Height: 3.5 in
    Weight: 12.57 lbs
    Comments: Without HDD
  • Environmental Parameters
    Min Operating Temperature: 14 °F
    Max Operating Temperature: 131 °F
    Humidity Range Operating: 0 - 90% RH (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 52161516
BRANDSGALAXY SECURITY
UNSPSC52161516
Part#SMR-SR-64NX-I8
MFG Part#SR-64NX-I8
Device TypeNVR
