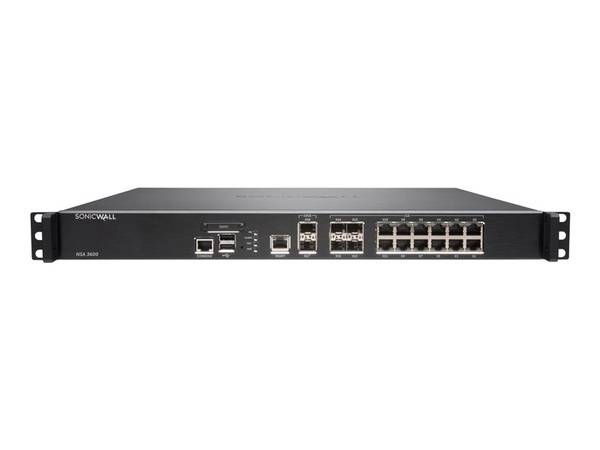

SONICWALL NSA 3600 DEMO NFR 6899749
SKU
6899749
Category: Network Devices
- Primary Information
Product Description: SonicWall NSa 3600 - security appliance Device Type: Security appliance Form Factor: External - 1U RAM: 2 GB Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Performance: Firewall throughput: 3.4 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 500 Mbps ¦ Application throughput: 1.1 Gbps ¦ IPS throughput: 1.1 Gbps ¦ Anti-malware throughput: 600 Mbps ¦ Firewall throughput (IMIX): 900 Mbps ¦ SSL throughput: 300 Mbps ¦ VPN throughput: 1.5 Gbps Capacity: New sessions per second: 20000 ¦ Connection / user qty: 325000 ¦ DPI connections: 175000 ¦ Maximum number of access points: 48 ¦ VPN tunnels (site-to-site): 800 ¦ IPSec VPN connections: 50 ¦ SSL VPN users: 2 ¦ Virtual interfaces (VLANs): 512 VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 Power: AC 120/230 V (50/60 Hz) Pricing Type: Not for resale, demo Dimensions (WxDxH): 17 in x 19.1 in x 1.8 in Weight: 13.56 lbs - General
Device Type: Security appliance Height (Rack Units): 1U Width: 17 in Depth: 19.1 in Height: 1.8 in Weight: 13.56 lbs - Processor / Memory / Storage
RAM: 2 GB - Networking
Form Factor: External Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, DHCP Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, CLI Performance: Firewall throughput: 3.4 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 500 Mbps ¦ Application throughput: 1.1 Gbps ¦ IPS throughput: 1.1 Gbps ¦ Anti-malware throughput: 600 Mbps ¦ Firewall throughput (IMIX): 900 Mbps ¦ SSL throughput: 300 Mbps ¦ VPN throughput: 1.5 Gbps Capacity: New sessions per second: 20000 ¦ Connection / user qty: 325000 ¦ DPI connections: 175000 ¦ Maximum number of access points: 48 ¦ VPN tunnels (site-to-site): 800 ¦ IPSec VPN connections: 50 ¦ SSL VPN users: 2 ¦ Virtual interfaces (VLANs): 512 Features: NAT support, VPN support, load balancing, DoS attack prevention, antivirus analysis, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), DHCP server, bandwidth control, Link Aggregation Control Protocol (LACP), NetFlow, IPFIX Encryption Algorithm: DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES Authentication Method: RADIUS, internal user database, Active Directory, XAUTH authentication Compliant Standards: IEEE 802.1p - IP Telephony
VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 IP Telephony Features: VoIP gatekeeper support, VoIP outbound bandwidth management - Expansion / Connectivity
Interfaces: 2 x 10GBase-X - SFP+ ¦ 4 x 1000Base-X - SFP (mini-GBIC) ¦ 12 x 1000Base-T - RJ-45 ¦ 2 x USB - Type A ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management - RJ-45 - Miscellaneous
Compliant Standards: FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI, ICSA Firewall certified, cUL, NOM, ICSA Antivirus, CB, RoHS, FIPS 140-2, KCC, WEEE, ANATEL, VPNC certified Pricing Type: Not for resale, demo - Power
Power Device: Internal power supply Installed Qty: 1 Max Supported Qty: 1 Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 74.3 Watt Power Provided: 250 Watt - Software / System Requirements
OS Provided: SonicOS - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-01-SSC-3852 |
| MFG Part# | 01-SSC-3852 |
| UPC | 758479038528 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, SNMP 2, SNMP 3 |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Triple DES |
