SONICWALL NSA 5650 TOTALSECURE ADVANCED EDITION 1 YR 6897020

SKU
6897020

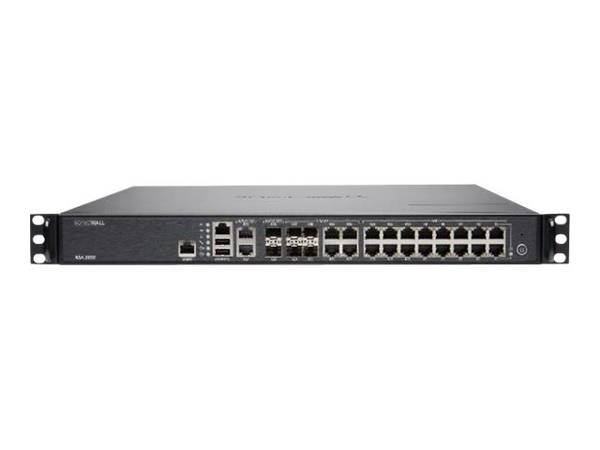

main product photo
CA$26,097.78
SONICWALL NSA 5650 TOTALSECURE ADVANCED EDITION 1 YR





buy now pay later
Category: Network Devices
  • Primary Information
    Product Description: SonicWall NSa 5650 - Advanced Edition - security appliance - with 1 year TotalSecure
    Device Type: Security appliance
    Bundled Services: 1 year TotalSecure
    Form Factor: Rack-mountable - 1U
    Flash Memory: 64 GB
    Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
    Performance: Firewall throughput: 6.25 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 1.7 Gbps ¦ Application throughput: 4.25 Gbps ¦ IPS throughput: 3.4 Gbps ¦ Anti-malware throughput: 1.7 Gbps ¦ Firewall throughput (IMIX): 1.45 Gbps ¦ SSL throughput: 800 Mbps ¦ VPN throughput: 3.5 Gbps ¦ Connection rate: 40000 connections per second
    Capacity: SPI connections: 4000000 ¦ DPI connections: 1500000 ¦ Maximum number of access points: 192 ¦ VPN tunnels (site-to-site): 6000 ¦ IPSec VPN connections: 2000 ¦ SSL VPN users: 2 ¦ Virtual interfaces (VLANs): 500 ¦ Single Sign-On (SSO) users: 70000
    VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
    Power: AC 120/230 V (50/60 Hz)
    Power Redundancy: Optional
    Dimensions (WxDxH): 16.9 in x 16.3 in x 1.8 in
    Weight: 15.21 lbs
  • General
    Device Type: Security appliance
    Bundled Services: 1 year TotalSecure
    Height (Rack Units): 1U
    Width: 16.9 in
    Depth: 16.3 in
    Height: 1.8 in
    Weight: 15.21 lbs
  • Processor / Memory / Storage
    Flash Memory: 64 GB
  • Networking
    Form Factor: Rack-mountable
    Connectivity Technology: Wired
    Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
    Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
    Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
    Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, CLI
    Performance: Firewall throughput: 6.25 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 1.7 Gbps ¦ Application throughput: 4.25 Gbps ¦ IPS throughput: 3.4 Gbps ¦ Anti-malware throughput: 1.7 Gbps ¦ Firewall throughput (IMIX): 1.45 Gbps ¦ SSL throughput: 800 Mbps ¦ VPN throughput: 3.5 Gbps ¦ Connection rate: 40000 connections per second
    Capacity: SPI connections: 4000000 ¦ DPI connections: 1500000 ¦ Maximum number of access points: 192 ¦ VPN tunnels (site-to-site): 6000 ¦ IPSec VPN connections: 2000 ¦ SSL VPN users: 2 ¦ Virtual interfaces (VLANs): 500 ¦ Single Sign-On (SSO) users: 70000
    Features: NAT support, VPN support, load balancing, Stateful Packet Inspection (SPI), DoS attack prevention, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), RADIUS support, DHCP server, DNS proxy, DHCP relay, Link Aggregation Control Protocol (LACP), NetFlow, IPFIX, 2+1 fans
    Encryption Algorithm: DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
    Authentication Method: RADIUS, internal user database, XAUTH authentication
    Compliant Standards: IEEE 802.3, IEEE 802.1p
  • IP Telephony
    VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
    IP Telephony Features: VoIP gatekeeper support, VoIP outbound bandwidth management
  • Expansion / Connectivity
    Expansion Slots: 1 (total) / 1 (free) x expansion slot
    Interfaces: 2 x 10Gb Ethernet - SFP+ ¦ 2 x 10Gb Ethernet - RJ-45 ¦ 4 x 2.5Gb Ethernet - SFP (mini-GBIC) ¦ 4 x 2.5Gb Ethernet - RJ-45 ¦ 16 x 1000Base-T - RJ-45 ¦ 2 x USB - Type A ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45
  • Miscellaneous
    MTBF: 17.5 years
    Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A
  • Power
    Power Device: Internal power supply
    Installed Qty: 1
    Max Supported Qty: 2
    Power Redundancy: Optional
    Voltage Required: AC 120/230 V (50/60 Hz)
    Power Consumption Operational: 103.6 Watt
    Power Provided: 350 Watt
  • Software / System Requirements
    OS Provided: SonicOS 6.5.1
  • Dimensions & Weight (Shipping)
    Shipping Weight: 24.91 lbs
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 10 - 90% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222501
More Information
BRANDS SONICWALL
UNSPSC 43222501
Part# SNW-01-SSC-4342
MFG Part# 01-SSC-4342
UPC 758479043423
Device Type Security appliance
Connectivity Technology Wired
Form Factor Rack-mountable
Data Link Protocol 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Remote Management Protocol CLI, HTTP, HTTPS, SNMP 2, SNMP 3
Encryption Algorithm 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Triple DES
