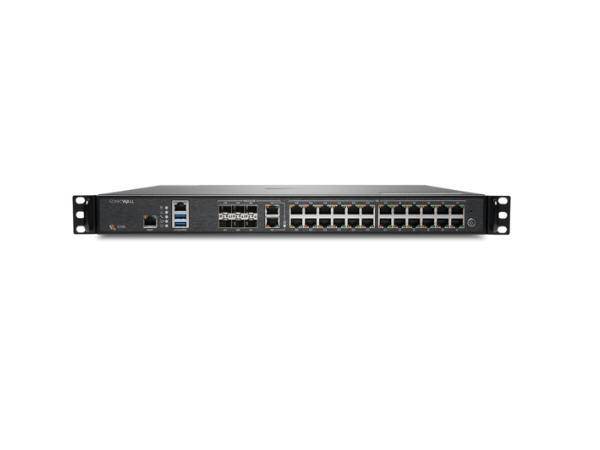

SONICWALL NSA 5700 SECURE UPGRADE PLUS - ESSENTIAL EDITION 2YR 6899782
SKU
6899782
CA$34,803.72
Category: Network Devices
- Primary Information
Product Description: SonicWall NSa 5700 - Essential Edition - security appliance Device Type: Security appliance Form Factor: Rack-mountable - 1U Hard Drive: 128 GB x 1 Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet Performance: Firewall throughput: 28 Gbps ¦ Threat prevention throughput: 15 Gbps ¦ Application throughput: 18 Gbps ¦ IPS throughput: 17 Gbps ¦ Anti-malware throughput: 16 Gbps ¦ TLS/SSL inspection and decryption throughput: 7 Gbps ¦ VPN throughput (IPSec): 15 Gbps ¦ Connection rate: 228000 connections per second Capacity: DPI connections: 3500000 ¦ Maximum number of access points: 512 ¦ VPN tunnels (site-to-site): 6000 ¦ SPI connections: 5000000 ¦ Virtual interfaces (VLANs): 512 ¦ DPI SSL connections: 350000 ¦ IPSec VPN clients: 2000 (maximum 4000) ¦ SSL VPN licenses: 2 (maximum 1500) ¦ Authenticated users (internal database): 2500 VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 Power: AC 100-240 V (50/60 Hz) Pricing Type: SonicWALL Secure Upgrade Plus Program (2 years option) Dimensions (WxDxH): 16.9 in x 18.3 in x 1.8 in Weight: 17.2 lbs Manufacturer Warranty: 1-year warranty - General
Device Type: Security appliance Height (Rack Units): 1U Width: 16.9 in Depth: 18.3 in Height: 1.8 in Weight: 17.2 lbs - Processor / Memory / Storage
Hard Drive: SSD 128 GB x 1 - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP, HTTP, HTTPs Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, SSH, CLI Performance: Firewall throughput: 28 Gbps ¦ Threat prevention throughput: 15 Gbps ¦ Application throughput: 18 Gbps ¦ IPS throughput: 17 Gbps ¦ Anti-malware throughput: 16 Gbps ¦ TLS/SSL inspection and decryption throughput: 7 Gbps ¦ VPN throughput (IPSec): 15 Gbps ¦ Connection rate: 228000 connections per second Capacity: DPI connections: 3500000 ¦ Maximum number of access points: 512 ¦ VPN tunnels (site-to-site): 6000 ¦ SPI connections: 5000000 ¦ Virtual interfaces (VLANs): 512 ¦ DPI SSL connections: 350000 ¦ IPSec VPN clients: 2000 (maximum 4000) ¦ SSL VPN licenses: 2 (maximum 1500) ¦ Authenticated users (internal database): 2500 Features: NAT support, VPN support, PAT support, load balancing, Stateful Packet Inspection (SPI), DoS attack prevention, port mirroring, IPv6 support, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-malware protection, Quality of Service (QoS), Dead Peer Detection (DPD), Jumbo Frames support, DHCP server, DNS proxy, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, web threat protection, DHCP relay, NetFlow, IPFIX, 2 fans, anti-virus protection, Reassembly-Free Deep Packet Inspection (RFDPI), Zero-touch provisioning (ZTP), DSCP Marking, VLAN trunking, SD-WAN support, Real-Time Deep Memory Inspection (RTDMI) Encryption Algorithm: DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, TLS 1.3 Authentication Method: RADIUS, LDAP, internal user database, XAUTH authentication - IP Telephony
VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 IP Telephony Features: VoIP gatekeeper support, VoIP outbound bandwidth management - Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x expansion slot Interfaces: 24 x 1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 6 x 1/2.5/5/10 Gigabit Ethernet - SFP+ ¦ 2 x 1/2.5/5/10 Gigabit Ethernet - RJ-45 - Miscellaneous
Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, VPNC certified, LVD, VCCI Class A, MSIP Class A, UC APL, Mexico CoC, Common Criteria Pricing Type: SonicWALL Secure Upgrade Plus Program (2 years option) - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 128.1 Watt Power Provided: 350 Watt - Software / System Requirements
OS Provided: SonicOS 7.0 Software Included: SonicWall Essential Protection Service Suite (2 years) - Dimensions & Weight (Shipping)
Shipping Weight: 29.76 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-02-SSC-3932 |
| MFG Part# | 02-SSC-3932 |
| UPC | 758479239321 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, SNMP 2, SNMP 3, SSH |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, TLS 1.3, Triple DES |
