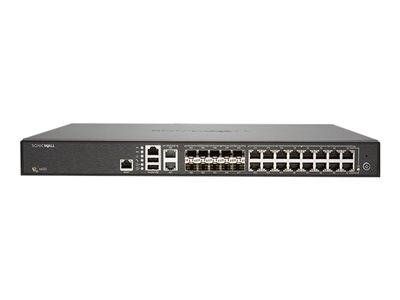

SONICWALL NSA 6650 HIGH AVAILABILITY 6897012
SKU
6897012
Category: Network Devices
- Primary Information
Product Description: SonicWall NSa 6650 - security appliance - High Availability Device Type: Security appliance Form Factor: Rack-mountable - 1U Flash Memory: 64 GB Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet Performance: Firewall throughput: 12 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 3.1 Gbps ¦ Application throughput: 6 Gbps ¦ IPS throughput: 6 Gbps ¦ Anti-malware throughput: 3.5 Gbps ¦ Firewall throughput (IMIX): 2.65 Gbps ¦ SSL throughput: 1.45 Gbps ¦ VPN throughput: 6 Gbps ¦ Connection rate: 90000 connections per second ¦ Threat prevention throughput: 3.1 Gbps Capacity: SPI connections: 5000000 ¦ DPI connections: 2000000 ¦ DPI SSL connections: 100000 ¦ Maximum number of access points: 192 ¦ VPN tunnels (site-to-site): 8000 ¦ IPSec VPN connections: 2000 ¦ SSL VPN users: 2 ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 70000 VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 Power: AC 120/230 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 16.9 in x 16.3 in x 1.8 in Weight: 17.86 lbs - General
Device Type: Security appliance Height (Rack Units): 1U Width: 16.9 in Depth: 16.3 in Height: 1.8 in Weight: 17.86 lbs - Processor / Memory / Storage
Flash Memory: 64 GB - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, SSH, CLI Performance: Firewall throughput: 12 Gbps ¦ Full Deep Packet Inspection (DPI) throughput: 3.1 Gbps ¦ Application throughput: 6 Gbps ¦ IPS throughput: 6 Gbps ¦ Anti-malware throughput: 3.5 Gbps ¦ Firewall throughput (IMIX): 2.65 Gbps ¦ SSL throughput: 1.45 Gbps ¦ VPN throughput: 6 Gbps ¦ Connection rate: 90000 connections per second ¦ Threat prevention throughput: 3.1 Gbps Capacity: SPI connections: 5000000 ¦ DPI connections: 2000000 ¦ DPI SSL connections: 100000 ¦ Maximum number of access points: 192 ¦ VPN tunnels (site-to-site): 8000 ¦ IPSec VPN connections: 2000 ¦ SSL VPN users: 2 ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 70000 Features: NAT support, VPN support, Stateful Packet Inspection (SPI), DoS attack prevention, IPv6 support, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-malware protection, RADIUS support, DHCP server, DNS proxy, Link Aggregation Control Protocol (LACP), IPFIX, SNMP support, 3 fans, WAN load balancing, Reassembly-Free Deep Packet Inspection (RFDPI), Advanced QoS Encryption Algorithm: DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES Authentication Method: RADIUS, LDAP, internal user database, XAUTH authentication Compliant Standards: IEEE 802.3, IEEE 802.1p - IP Telephony
VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 IP Telephony Features: VoIP gatekeeper support, VoIP outbound bandwidth management - Expansion / Connectivity
Expansion Slots: 1 expansion slot Interfaces: 6 x 10Gb Ethernet - SFP+ ¦ 2 x 10Gb Ethernet ¦ 4 x 2.5Gb Ethernet - SFP (mini-GBIC) ¦ 8 x 2.5Gb Ethernet ¦ 8 x Ethernet 1000 ¦ 1 x 1000Base-T (management) ¦ 1 x console ¦ 2 x USB - Miscellaneous
MTBF: 17.9 years Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A, Mexico CoC - Power
Power Device: Internal power supply Installed Qty: 1 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 144.3 Watt Power Provided: 350 Watt - Software / System Requirements
OS Provided: SonicOS 6.5.2 Software Included: SonicWall Capture Security, Enforced Content Filtering Client - Dimensions & Weight (Shipping)
Shipping Weight: 27.78 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-01-SSC-3218 |
| MFG Part# | 01-SSC-3218 |
| UPC | 758479032182 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, SNMP 2, SNMP 3, SSH |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Triple DES |
