SONICWALL NSSP 13700 HIGH AVAILABILITY 6896981

SKU
6896981
main product photo
CA$81,549.11

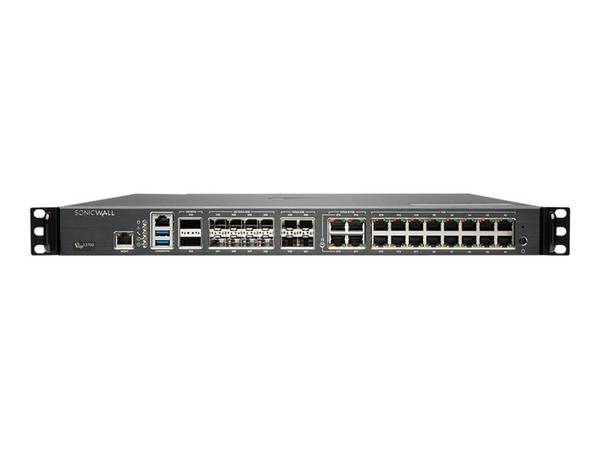

SONICWALL NSSP 13700 HIGH AVAILABILITY





buy now pay later
Category: Network Devices
  • Primary Information
    Product Description: SonicWall NSsp 13700 - High Availability - security appliance
    Device Type: Security appliance
    Form Factor: Rack-mountable - 1U
    Hard Drive: 1 TB x 1
    Hard Drive (2nd): 512 GB x 1
    Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
    Performance: Firewall throughput: 60 Gbps ¦ Threat prevention throughput: 45.5 Gbps ¦ Application throughput: 57 Gbps ¦ IPS throughput: 48 Gbps ¦ TLS/SSL inspection and decryption throughput: 16.5 Gbps ¦ VPN throughput: 29 Gbps ¦ Connection rate: 280000 connections per second
    Capacity: SPI connections: 25000000 ¦ DPI connections: 22000000 ¦ DPI SSL connections: 2000000 ¦ VPN tunnels (site-to-site): 12000 ¦ IPSec VPN clients: 2000 (maximum 6000) ¦ Virtual interfaces (VLANs): 1024 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN licenses: 2 (maximum 3000)
    VoIP Protocols: SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5
    Power: AC 100-240 V (50 - 60 Hz)
    Power Redundancy: Yes
    Dimensions (WxDxH): 16.9 in x 12.8 in x 1.8 in
    Weight: 20.06 lbs
  • General
    Device Type: Security appliance
    Height (Rack Units): 1U
    Width: 16.9 in
    Depth: 12.8 in
    Height: 1.8 in
    Weight: 20.06 lbs
  • Processor / Memory / Storage
    Hard Drive: SSD 1 TB x 1
    Hard Drive (2nd): SSD - 512 GB x 1 - M.2
  • Networking
    Form Factor: Rack-mountable
    Connectivity Technology: Wired
    Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
    Network / Transport Protocol: TCP/IP, ICMP/IP, IPSec, PPPoE, L2TP, DHCP, PPTP, UDP/IP
    Routing Protocol: BGP, OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR)
    Remote Management Protocol: HTTP, HTTPS, SNMP 2, SNMP 3, CLI, SSH
    Performance: Firewall throughput: 60 Gbps ¦ Threat prevention throughput: 45.5 Gbps ¦ Application throughput: 57 Gbps ¦ IPS throughput: 48 Gbps ¦ TLS/SSL inspection and decryption throughput: 16.5 Gbps ¦ VPN throughput: 29 Gbps ¦ Connection rate: 280000 connections per second
    Capacity: SPI connections: 25000000 ¦ DPI connections: 22000000 ¦ DPI SSL connections: 2000000 ¦ VPN tunnels (site-to-site): 12000 ¦ IPSec VPN clients: 2000 (maximum 6000) ¦ Virtual interfaces (VLANs): 1024 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN licenses: 2 (maximum 3000)
    Features: Deep Packet Inspection (DPI), firewall protection, web threat protection, URL filtering, Intrusion Prevention System (IPS), VPN support, Dead Peer Detection (DPD), DHCP relay, DHCP server, DSCP Marking, IPSec NAT-Traversal (NAT-T), LDAP support, NAT support, PAT support, Quality of Service (QoS), RADIUS support, routing, Stateful Packet Inspection (SPI), DDos attack prevention, IPv6 support, IPv4 support, DNS proxy, Jumbo Frames support, VLAN trunking, port mirroring, Inbound Load Balancing, Outbound Load Balancing, bandwidth control, Syslog support, IPFIX, NetFlow, Stateful switchover (SSO), anti-malware protection, 3 fans, Real-Time Deep Memory Inspection (RTDMI), Zero-touch provisioning (ZTP), anti-virus protection, Common Access Card (CAC) reader support
    Encryption Algorithm: DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, MD5, ISAKMP, IKE, TLS 1.3
    Authentication Method: LDAP, XAUTH authentication, RADIUS, internal user database
    Compliant Standards: IEEE 802.3
  • IP Telephony
    VoIP Protocols: SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5
    IP Telephony Features: VoIP gatekeeper support, VoIP outbound bandwidth management
  • Expansion / Connectivity
    Interfaces: 2 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ¦ 8 x 2.5/5/10/25 Gigabit Ethernet - SFP28 ¦ 4 x 2.5/5/10 Gigabit Ethernet - SFP+ ¦ 4 x 1/2.5/5/10GBase-T - RJ-45 ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB 3.0 - Type A
  • Miscellaneous
    Compliant Standards: FCC Class A certified, LVD, RoHS, C-Tick, VCCI Class A, MSIP Class A, KCC Class A, UL, cUL, TUV GS, CB, WEEE, REACH, ANATEL, BSMI, EMC, FIPS 140-2 Level 2, ICSA Antivirus, ICSA Firewall certified, VPNC certified, Mexico CoC, Common Criteria, UC APL
  • Power
    Power Device: Internal power supply - hot-plug
    Installed Qty: 2
    Max Supported Qty: 2
    Power Redundancy: Yes
    Voltage Required: AC 100-240 V (50 - 60 Hz)
    Power Consumption Operational: 181.2 Watt
    Power Provided: 350 Watt
  • Software / System Requirements
    OS Provided: SonicOS 7.0.1
  • Dimensions & Weight (Shipping)
    Shipping Weight: 32.85 lbs
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 0 - 90% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222500
More Information
BRANDS SONICWALL
UNSPSC 43222500
Part# SNW-02-SSC-9068
MFG Part# 02-SSC-9068
UPC 758479290681
Device Type Security appliance
Connectivity Technology Wired
Form Factor Rack-mountable
Data Link Protocol 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Remote Management Protocol CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH
Encryption Algorithm 128-bit AES, 192-bit AES, 256-bit AES, DES, IKE, ISAKMP, MD5, SHA-1, TLS 1.3, Triple DES
