SONICWALL NSSP 15700 HIGH AVAILABILITY 6896978

SKU
6896978
main product photo
CA$187,776.51

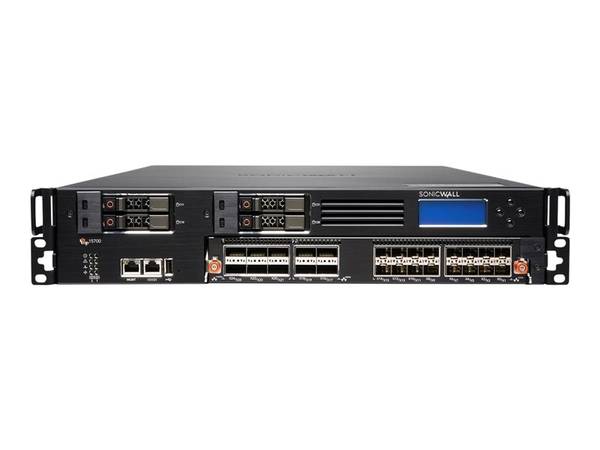

SONICWALL NSSP 15700 HIGH AVAILABILITY





buy now pay later
Category: Network Devices
  • Primary Information
    Product Description: SonicWall NSsp 15700 - High Availability - security appliance
    Device Type: Security appliance
    Form Factor: Rack-mountable - 2U
    Hard Drive: 480 GB x 2
    Data Link Protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
    Performance: Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ Firewall throughput (IMIX): 28.5 Gbps ¦ TLS/SSL throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second
    Capacity: SPI connections: 80000000 ¦ DPI connections: 50000000 ¦ DPI SSL connections: 3000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN NetExtender clients: 2 (maximum 3000)
    VoIP Protocols: SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5
    Power: AC 120/230 V (50 - 60 Hz)
    Power Redundancy: Yes
    Dimensions (WxDxH): 17.2 in x 27 in x 3.5 in
    Weight: 57.32 lbs
  • General
    Device Type: Security appliance
    Height (Rack Units): 2U
    Width: 17.2 in
    Depth: 27 in
    Height: 3.5 in
    Weight: 57.32 lbs
  • Processor / Memory / Storage
    Hard Drive: SSD 480 GB x 2
  • Networking
    Form Factor: Rack-mountable
    Connectivity Technology: Wired
    Data Link Protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
    Network / Transport Protocol: TCP/IP, ICMP/IP, IPSec, PPPoE, L2TP, DHCP, PPTP, UDP/IP
    Routing Protocol: BGP, OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR)
    Remote Management Protocol: HTTP, HTTPS, SNMP 2, SNMP 3, CLI, SSH
    Performance: Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ Firewall throughput (IMIX): 28.5 Gbps ¦ TLS/SSL throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second
    Capacity: SPI connections: 80000000 ¦ DPI connections: 50000000 ¦ DPI SSL connections: 3000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN NetExtender clients: 2 (maximum 3000)
    Features: Deep Packet Inspection (DPI), firewall protection, web threat protection, content filtering, Intrusion Prevention System (IPS), VPN support, Dead Peer Detection (DPD), DHCP over IPSec, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, IPSec NAT-Traversal (NAT-T), LDAP support, NAT support, PAT support, Quality of Service (QoS), RADIUS support, routing, Stateful Packet Inspection (SPI), DDos attack prevention, IPv6 support, IPv4 support, DNS proxy, Jumbo Frames support, VLAN trunking, port mirroring, Inbound Load Balancing, Outbound Load Balancing, bandwidth control, Syslog support, IPFIX, NetFlow, Stateful switchover (SSO), anti-malware protection, 10 fans
    Encryption Algorithm: DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, MD5, ISAKMP, IKE
    Authentication Method: LDAP, XAUTH authentication, RADIUS, internal user database
    Compliant Standards: IEEE 802.3, IEEE 802.1p
  • IP Telephony
    VoIP Protocols: SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5
    IP Telephony Features: VoIP gatekeeper support
  • Expansion / Connectivity
    Interfaces: 6 x 100Gb Ethernet - QSFP28 ¦ 4 x 40Gb Ethernet - QSFP+ ¦ 16 x 10Gb Ethernet - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45
  • Miscellaneous
    Compliant Standards: FCC Class A certified, LVD, RoHS, C-Tick, VCCI Class A, MSIP Class A, KCC Class A, UL, cUL, TUV GS, CB, WEEE, REACH, ANATEL, BSMI, EMC, ICES Class A, FIPS 140-2, ICSA Antivirus, ICSA Firewall certified
  • Power
    Power Device: Internal power supply
    Installed Qty: 2
    Max Supported Qty: 2
    Power Redundancy: Yes
    Voltage Required: AC 120/230 V (50 - 60 Hz)
    Power Consumption Operational: 1065 Watt
    Power Provided: 1200 Watt
  • Software / System Requirements
    OS Provided: SonicOS 7.0
  • Dimensions & Weight (Shipping)
    Shipping Weight: 82.23 lbs
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 10 - 95% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222501
More Information
BRANDS SONICWALL
UNSPSC 43222501
Part# SNW-02-SSC-6000
MFG Part# 02-SSC-6000
UPC 758479260004
Device Type Security appliance
Connectivity Technology Wired
Form Factor Rack-mountable
Data Link Protocol 10 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet
Remote Management Protocol CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH
Encryption Algorithm 128-bit AES, 192-bit AES, 256-bit AES, DES, IKE, ISAKMP, MD5, SHA-1, Triple DES
