SONICWALL NSSP 15700 TOTALSECURE - ESSENTIAL EDITION 1YR 6896979
SKU
6896979
CA$349,333.25
Category: Network Devices
- Primary Information

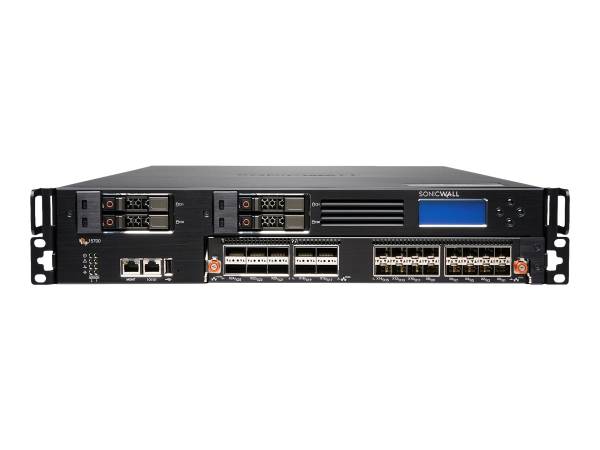

Product Description: SonicWall NSsp 15700 - Essential Edition - security appliance - with 1 year TotalSecure Device Type: Security appliance Bundled Services: 1 year TotalSecure Form Factor: Rack-mountable - 2U Hard Drive: 480 GB x 2 Data Link Protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet Performance: Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ Firewall throughput (IMIX): 28.5 Gbps ¦ TLS/SSL throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second Capacity: SPI connections: 80000000 ¦ DPI connections: 50000000 ¦ DPI SSL connections: 3000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN NetExtender clients: 2 (maximum 3000) VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 Power: AC 120/230 V (50 - 60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 17.2 in x 27 in x 3.5 in Weight: 57.32 lbs - General
Device Type: Security appliance Bundled Services: 1 year TotalSecure Height (Rack Units): 2U Width: 17.2 in Depth: 27 in Height: 3.5 in Weight: 57.32 lbs - Processor / Memory / Storage
Hard Drive: SSD 480 GB x 2 - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI Performance: Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ Firewall throughput (IMIX): 28.5 Gbps ¦ TLS/SSL throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second Capacity: SPI connections: 80000000 ¦ DPI connections: 50000000 ¦ DPI SSL connections: 3000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ Virtual interfaces (VLANs): 512 ¦ Single Sign-On (SSO) users: 100000 ¦ SSL VPN NetExtender clients: 2 (maximum 3000) Features: Firewall protection, routing, NAT support, VPN support, PAT support, LDAP support, Syslog support, Stateful Packet Inspection (SPI), content filtering, port mirroring, IPv6 support, Intrusion Prevention System (IPS), Deep Packet Inspection (DPI), Inbound Load Balancing, Outbound Load Balancing, DDos attack prevention, Stateful switchover (SSO), anti-malware protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), RADIUS support, Jumbo Frames support, DHCP server, DNS proxy, bandwidth control, IPv4 support, web threat protection, DHCP relay, NetFlow, IPFIX, DiffServ Code Point (DSCP) support, 10 fans, VLAN trunking, DHCP over IPSec Encryption Algorithm: DES, Triple DES, MD5, IKE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, ISAKMP Authentication Method: RADIUS, LDAP, internal user database, XAUTH authentication Compliant Standards: IEEE 802.3, IEEE 802.1p - IP Telephony
VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 IP Telephony Features: VoIP gatekeeper support - Expansion / Connectivity
Interfaces: 6 x 100Gb Ethernet - QSFP28 ¦ 4 x 40Gb Ethernet - QSFP+ ¦ 16 x 10Gb Ethernet - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 - Miscellaneous
Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, EMC, RoHS, FIPS 140-2, WEEE, ANATEL, REACH, ICES Class A, KCC Class A, LVD, VCCI Class A, MSIP Class A - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 120/230 V (50 - 60 Hz) Power Consumption Operational: 1065 Watt Power Provided: 1200 Watt - Software / System Requirements
OS Provided: SonicOS 7.0 - Dimensions & Weight (Shipping)
Shipping Weight: 82.23 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-02-SSC-4764 |
| MFG Part# | 02-SSC-4764 |
| UPC | 758479247647 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet |
| Remote Management Protocol | CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, IKE, ISAKMP, MD5, SHA-1, Triple DES |
