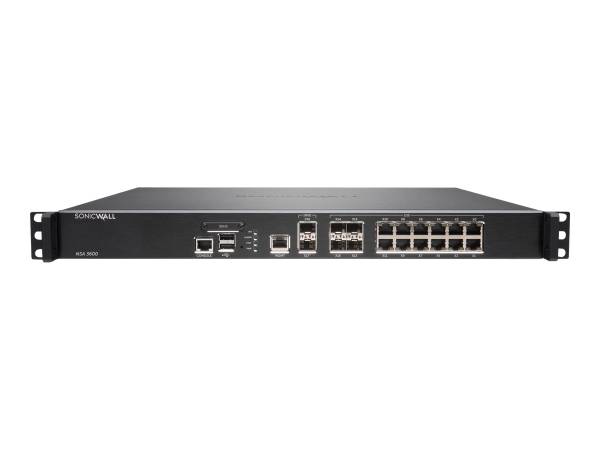

SONICWALL PROMO NSA 3600 HIGH AVAILABILITY 6897037
SKU
6897037
Category: Network Devices
- Primary Information
Product Description: SonicWall NSa 3600 - security appliance - High Availability Device Type: Security appliance Form Factor: Rack-mountable - 1U Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Performance: Firewall throughput: 3.4 Gbps ¦ Threat prevention throughput: 500 Mbps ¦ Application throughput: 1.1 Gbps ¦ IPS throughput: 1.1 Gbps ¦ Anti-malware throughput: 600 Mbps ¦ Firewall throughput (IMIX): 900 Mbps ¦ SSL throughput: 300 Mbps ¦ VPN throughput: 1.5 Gbps ¦ Connection rate: 20000 connections per second Capacity: SPI connections: 750000 ¦ DPI connections: 375000 ¦ Maximum number of access points: 48 ¦ VPN tunnels (site-to-site): 1000 ¦ IPSec VPN connections: 50 (maximum 1000) ¦ SSL VPN users: 2 (maximum 350) ¦ Virtual interfaces (VLANs): 256 VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 19.1 in x 16.9 in x 1.8 in Weight: 13.56 lbs - General
Device Type: Security appliance Height (Rack Units): 1U Width: 19.1 in Depth: 16.9 in Height: 1.8 in Weight: 13.56 lbs - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, CLI Performance: Firewall throughput: 3.4 Gbps ¦ Threat prevention throughput: 500 Mbps ¦ Application throughput: 1.1 Gbps ¦ IPS throughput: 1.1 Gbps ¦ Anti-malware throughput: 600 Mbps ¦ Firewall throughput (IMIX): 900 Mbps ¦ SSL throughput: 300 Mbps ¦ VPN throughput: 1.5 Gbps ¦ Connection rate: 20000 connections per second Capacity: SPI connections: 750000 ¦ DPI connections: 375000 ¦ Maximum number of access points: 48 ¦ VPN tunnels (site-to-site): 1000 ¦ IPSec VPN connections: 50 (maximum 1000) ¦ SSL VPN users: 2 (maximum 350) ¦ Virtual interfaces (VLANs): 256 Features: NAT support, VPN support, load balancing, Stateful Packet Inspection (SPI), DoS attack prevention, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), RADIUS support, DHCP server, DNS proxy, DHCP relay, NetFlow, IPFIX, 2 fans Encryption Algorithm: DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES Authentication Method: RADIUS, internal user database, XAUTH authentication Compliant Standards: IEEE 802.3, IEEE 802.1p - IP Telephony
VoIP Protocols: SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 IP Telephony Features: VoIP gatekeeper support, VoIP outbound bandwidth management - Communications
Supported Flash Memory Cards: SD Memory Card - Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x expansion slot Interfaces: 2 x 10GBase-X - SFP+ ¦ 4 x 1000Base-X - SFP (mini-GBIC) ¦ 12 x 1000Base-T - RJ-45 ¦ 2 x USB - Type A ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management - RJ-45 - Miscellaneous
MTBF: 16.76 years Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A, CoC, CU - Power
Power Device: Internal power supply Installed Qty: 1 Max Supported Qty: 1 Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 74.3 Watt Power Provided: 250 Watt - Software / System Requirements
OS Provided: SonicOS 6.5 - Dimensions & Weight (Shipping)
Shipping Weight: 20.79 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-02-SSC-0999 |
| MFG Part# | 02-SSC-0999 |
| UPC | 758479209997 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, HTTP, HTTPS, SNMP 2, SNMP 3 |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Triple DES |
