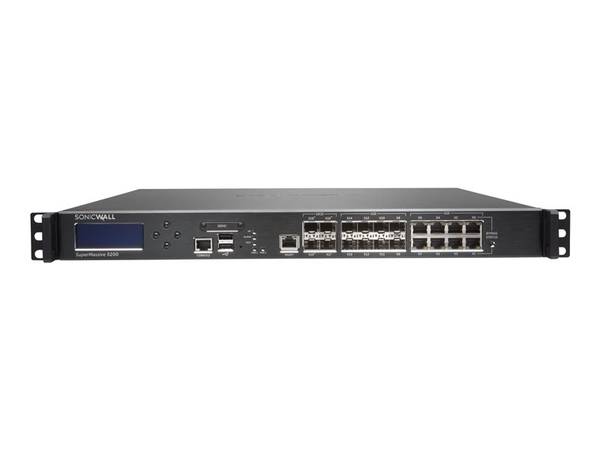

SONICWALL SUPERMASSIVE 9200 HIGH AVAILABILITY 6897008
SKU
6897008
Category: Network Devices
- Primary Information
Product Description: SonicWall SuperMassive 9200 High Availability - security appliance Device Type: Security appliance Form Factor: Rack-mountable - 1U RAM: 8 GB Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Performance: Firewall throughput: 15 Gbps ¦ Application throughput: 5 Gbps ¦ IPS throughput: 5 Gbps ¦ Anti-malware throughput: 3.5 Gbps ¦ VPN throughput: 5 Gbps ¦ Forwarding performance (IMIX): 4.4 Gbps Capacity: Maximum application cores: 24 ¦ VPN tunnels (site-to-site): 6000 ¦ VPN client licenses: 2000 ¦ SSL VPN tunnels: 2 ¦ Virtual interfaces (VLANs): 512 ¦ Connection / user qty: 1250000 ¦ DPI connections: 1000000 VoIP Protocols: H.323, SIP Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 17 in x 19.1 in x 1.8 in Weight: 18.08 lbs - General
Device Type: Security appliance Height (Rack Units): 1U Built-in Devices: Status LCD Width: 17 in Depth: 19.1 in Height: 1.8 in Weight: 18.08 lbs - Processor / Memory / Storage
RAM: 8 GB - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, CLI Performance: Firewall throughput: 15 Gbps ¦ Application throughput: 5 Gbps ¦ IPS throughput: 5 Gbps ¦ Anti-malware throughput: 3.5 Gbps ¦ VPN throughput: 5 Gbps ¦ Forwarding performance (IMIX): 4.4 Gbps Capacity: Maximum application cores: 24 ¦ VPN tunnels (site-to-site): 6000 ¦ VPN client licenses: 2000 ¦ SSL VPN tunnels: 2 ¦ Virtual interfaces (VLANs): 512 ¦ Connection / user qty: 1250000 ¦ DPI connections: 1000000 Status Indicators: Power, test mode, alarm Features: NAT support, VPN support, load balancing, LDAP support, Stateful Packet Inspection (SPI), DoS attack prevention, manageable, High Availability, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, anti-malware protection, Quality of Service (QoS), RADIUS support, DHCP server, reset button, bandwidth control, hot swappable dual fans, Link Aggregation Control Protocol (LACP), NetFlow, IPFIX Encryption Algorithm: DES, Triple DES, MD5, SHA-1, FIPS 140-2, 128-bit AES, 192-bit AES, 256-bit AES Authentication Method: RADIUS, LDAP, Active Directory, XAUTH authentication Compliant Standards: IEEE 802.1p - IP Telephony
VoIP Protocols: H.323, SIP - Communications
Supported Flash Memory Cards: SDHC Memory Card - Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x expansion slot Interfaces: 1 x 1000Base-T (management) - RJ-45 ¦ 2 x USB - Type A ¦ 1 x management - RJ-45 ¦ 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 4 x 10GBase-X - SFP+ - Miscellaneous
Cables Included: 1 x network cable ¦ 1 x serial cable Rack Mounting Kit: Included Compliant Standards: FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI, cUL, NOM, CB, RoHS, KCC, WEEE, ANATEL - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Max Supported Qty: 2 Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 300 Watt - Software / System Requirements
OS Provided: SonicOS - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-01-SSC-3811 |
| MFG Part# | 01-SSC-3811 |
| UPC | 758479038115 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, HTTP, HTTPS, SNMP 2, SNMP 3 |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, FIPS 140-2, MD5, SHA-1, Triple DES |
