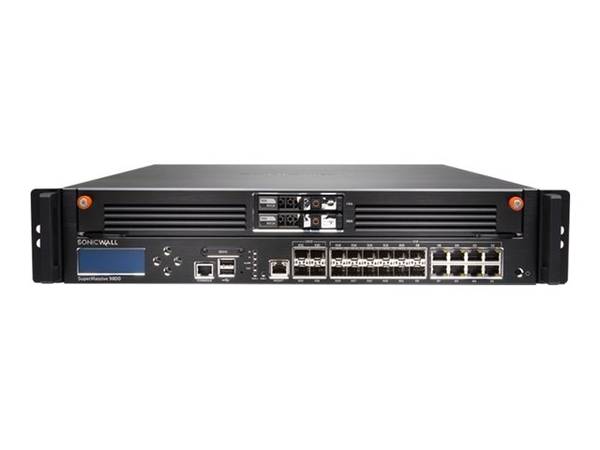

SONICWALL SUPERMASSIVE 9800 SECURE UPGRADE PLUS - ADVANCED EDITION 2YR 6899857
SKU
6899857
CA$121,931.31
SONICWALL SUPERMASSIVE 9800 SECURE UPGRADE PLUS - ADVANCED EDITION 2YR
Category: Network Devices
- Primary Information
Product Description: SonicWall SuperMassive 9800 - Advanced Edition - security appliance - Secure Upgrade Plus Device Type: Security appliance Form Factor: Rack-mountable - 2U RAM: 64 GB Hard Drive: 80 GB x 2 Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Performance: Firewall throughput: 28 Gbps ¦ Inspection throughput: 20 Gbps ¦ IPS throughput: 18 Gbps ¦ Anti-malware throughput: 9 Gbps ¦ VPN throughput: 14 Gbps ¦ Forwarding performance (IMIX): 6 Gbps ¦ Connection rate: 226000 connections per second ¦ Full Deep Packet Inspection (DPI) throughput: 9 Gbps Capacity: Maximum application cores: 64 ¦ VPN tunnels (site-to-site): 25000 ¦ VPN client licenses: 2000 ¦ Virtual interfaces (VLANs): 512 ¦ DPI connections: 2500000 ¦ SPI connections: 3000000 ¦ SSL connections: 48000 ¦ Single Sign-On (SSO) users: 110000 VoIP Protocols: H.323, SIP Power: AC 120/230 V (50/60 Hz) Power Redundancy: Yes Pricing Type: SonicWALL Secure Upgrade Plus Program (2 years option) Dimensions (WxDxH): 16.9 in x 23.6 in x 3.5 in Weight: 40.52 lbs - General
Device Type: Security appliance Height (Rack Units): 2U Built-in Devices: Status LCD Width: 16.9 in Depth: 23.6 in Height: 3.5 in Weight: 40.52 lbs - Processor / Memory / Storage
RAM: 64 GB Hard Drive: SSD 80 GB x 2 - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Network / Transport Protocol: TCP/IP, PPTP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP Routing Protocol: OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI Performance: Firewall throughput: 28 Gbps ¦ Inspection throughput: 20 Gbps ¦ IPS throughput: 18 Gbps ¦ Anti-malware throughput: 9 Gbps ¦ VPN throughput: 14 Gbps ¦ Forwarding performance (IMIX): 6 Gbps ¦ Connection rate: 226000 connections per second ¦ Full Deep Packet Inspection (DPI) throughput: 9 Gbps Capacity: Maximum application cores: 64 ¦ VPN tunnels (site-to-site): 25000 ¦ VPN client licenses: 2000 ¦ Virtual interfaces (VLANs): 512 ¦ DPI connections: 2500000 ¦ SPI connections: 3000000 ¦ SSL connections: 48000 ¦ Single Sign-On (SSO) users: 110000 Features: NAT support, VPN support, PAT support, load balancing, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, IPv6 support, High Availability, URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Quality of Service (QoS), DHCP server, bandwidth control, Common Access Card (CAC) reader support, hot swappable dual fans, DHCP relay, Port Security, NetFlow, IPFIX, DiffServ Code Point (DSCP) support Encryption Algorithm: DES, Triple DES, MD5, IKE, SHA-1, FIPS 140-2, 128-bit AES, 192-bit AES, 256-bit AES Authentication Method: RADIUS, LDAP, internal user database, Active Directory, XAUTH authentication Compliant Standards: IEEE 802.3, IEEE 802.1p - IP Telephony
VoIP Protocols: H.323, SIP - Communications
Supported Flash Memory Cards: SD Memory Card - Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x expansion slot Interfaces: 1 x 1000Base-T (management) - RJ-45 ¦ 2 x USB - Type A ¦ 1 x console - RJ-45 ¦ 8 x 1000Base-T - RJ-45 ¦ 12 x 1000Base-X - SFP (mini-GBIC) ¦ 4 x 10GBase-X - SFP+ - Miscellaneous
MTBF: 126,144 hours Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP, CoC, CU Pricing Type: SonicWALL Secure Upgrade Plus Program (2 years option) - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 350 Watt Power Provided: 500 Watt - Software / System Requirements
OS Provided: SonicOS - Dimensions & Weight (Shipping)
Shipping Weight: 65.34 lbs - Environmental Parameters
Min Operating Temperature: 59 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222501
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222501 |
| Part# | SNW-01-SSC-1992 |
| MFG Part# | 01-SSC-1992 |
| UPC | 758479019923 |
| Device Type | Security appliance |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH |
| Encryption Algorithm | 128-bit AES, 192-bit AES, 256-bit AES, DES, FIPS 140-2, IKE, MD5, SHA-1, Triple DES |
