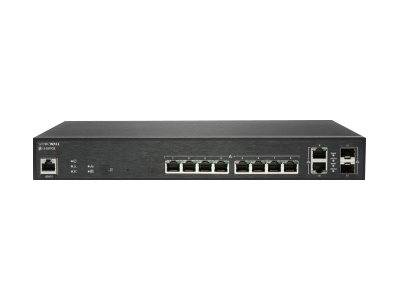

SONICWALL SWITCH SWS12-10FPOE 6897191
SKU
6897191
Category: Hubs & Switches
- Primary Information
Product Description: SonicWall Switch SWS12-10FPOE - switch - 12 ports - managed Device Type: Switch - 12 ports - managed Subtype: Gigabit Ethernet Ports: 10 x 10/100/1000 (PoE+) + 2 x Gigabit SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 130 W Performance: Switching capacity: 24 Gbps Capacity: Virtual interfaces (VLANs): 4096 MAC Address Table Size: 8K entries Routing Protocol: Static IP routing Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration Compliant Standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 13 in x 9.1 in x 1.7 in Weight: 5.51 lbs - General
Device Type: Switch - 12 ports - managed Enclosure Type: Desktop Subtype: Gigabit Ethernet Ports: 10 x 10/100/1000 (PoE+) + 2 x Gigabit SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 130 W Performance: Switching capacity: 24 Gbps Capacity: Virtual interfaces (VLANs): 4096 MAC Address Table Size: 8K entries Routing Protocol: Static IP routing Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI Authentication Method: RADIUS Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration Compliant Standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at RAM: 256 MB Flash Memory: 32 MB Status Indicators: Power, PoE, fault - Expansion / Connectivity
Interfaces: 10 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 - Power
Power Device: Internal power supply Power Provided: 180 Watt Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 152.8 Watt - Miscellaneous
MTBF: 180,837 hours Compliant Standards: FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, EMC Class A, VCCI Class A, MSIP - Dimensions & Weight
Width: 13 in Depth: 9.1 in Height: 1.7 in Weight: 5.51 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 95% Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | SONICWALL |
|---|---|
| UNSPSC | 43222612 |
| Part# | SNW-02-SSC-2464 |
| MFG Part# | 02-SSC-2464 |
| UPC | 758479224648 |
| Device Type | Switch - 12 ports - managed |
| Enclosure Type | Desktop |
| Remote Management Protocol | CLI, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH |
