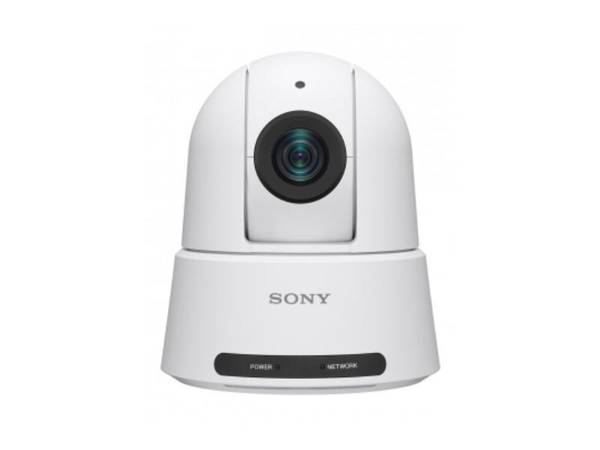

SONY 20X OPTICAL BUILT-IN AI 4K PTZ CAMERA - WHITE 7230934
SKU
7230934
Category: AV Accessories
- Primary Information
Product Description: Sony SRG-A40 - conference camera - turret Device Type: Conference camera - pan / tilt / zoom - turret Audio: Yes: 2ch audio support Camera Mount Type: Ceiling mount, surface mount Dimensions (WxDxH): 6.2 in x 7.9 in x 7.2 in Weight: 4.41 lbs Color: White Connectivity Technology: Wired Camera: Color - Day&Night - 1700 TVL Optical Zoom: 20 x Max Resolution: 3840 x 2160 Frame Rate (max): 59.94 frames per second Video Modes: 2160/29.97p, 2160/25p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 2160/23.98p, 1080/23.98p Optical Sensor Type: Exmor R CMOS - 1/2.5" - 8.5 MP Minimum Illumination: 1.6 lux F2.0 - 50 IRE - shutter 1/30 sec Focal Length Control: Motorized zoom Focal Length: 4.4 mm - 88 mm Focus Adjustment: Automatic, manual (min distance 3.1 in) Lens Iris: F/2.0-3.8 - auto iris Panning Range (degree): -170 to +170 Tilting Range (degree): -20 to +90 Interfaces: HDMI, SDI, LAN Control Interface: VISCA Voltage: PoE Plus Class 4 Features: Exposure control, white balance, 256 preset positions, PTZ Motion Sync, Constant Bitrate (CBR), Variable Bitrate (VBR), auto ICR, Visibility Enhancer, image stabilizer, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, PTZ Auto Framing, tally light, AI-powered, Clear Image Zoom, Picture Freeze Preset Environmental Parameters (operating): 32 °F - 104 °F - General
Device Type: Conference camera Audio Support: Yes: 2ch audio support Audio Formats: AAC-LC Form Factor: Turret Camera Mount Type: Ceiling mount, surface mount Connectivity Technology: Wired Width: 6.2 in Depth: 7.9 in Height: 7.2 in Weight: 4.41 lbs - Camera
Type: Color - Day&Night - pan / tilt / zoom Digital Video Format: H.264, H.265 Horizontal Resolution (TV Lines): 1700 Max Digital Video Resolution: 3840 x 2160 Video Modes: 2160/29.97p, 2160/25p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 2160/23.98p, 1080/23.98p Digital Zoom: 80 Exposure Range: 1/1 sec - 1/10000 sec Minimum Illumination: 1.6 lux F2.0 - 50 IRE - shutter 1/30 sec Digital Video Capture Resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 Frame Rate (max): 59.94 frames per second Features: Exposure control, white balance, 256 preset positions, PTZ Motion Sync, Constant Bitrate (CBR), Variable Bitrate (VBR), auto ICR, Visibility Enhancer, image stabilizer, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, PTZ Auto Framing, tally light, AI-powered, Clear Image Zoom, Picture Freeze Preset - Image Sensor
Type: 8.5 MP Exmor R CMOS 1/2.5" - Lens Construction
Type: Motorized zoom Optical Zoom: 20 x Focal Length: 4.4 mm - 88 mm Lens Iris: F/2.0-3.8 auto iris Focus Adjustment: Automatic, manual Min Focus Distance: 3.1 in Horizontal Field of View (degree): 70 - Panning
Range (degree): -170 to +170 Speed (degree/sec): Up to 300 - Tilting
Range (degree): -20 to +90 Speed (degree/sec): Up to 126 - Interfaces
Video: HDMI, SDI Network Interface: LAN Network Protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, RTCP, RTP, RTSP, SRT, TCP/IP, UDP/IP, NDI HX Control Interface: VISCA - Expansion / Connectivity
Ports: HDMI output - HDMI Type A ¦ 3G-SDI output - BNC ¦ LAN/power - RJ-45 ¦ VISCA input - RJ-45 ¦ VISCA output - RJ-45 ¦ Microphone - 3.5 mm stereo jack - Miscellaneous
Included Accessories: Power adapter, remote control, ceiling mount bracket, 9 screws M3x8, wire rope, screw M2.6x6, HDMI cable fixing plate Compliant Standards: IEEE 802.3bt Color: White - Power
Power Requirements: PoE Plus Class 4 Power Device: Power adapter / PoE - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45121633
| BRANDS | SONY ELECTRONICS |
|---|---|
| UNSPSC | 45121633 |
| Part# | SON-SRGA40/W |
| MFG Part# | SRGA40/W |
| UPC | 27242925564 |
| Max Resolution | 3840 x 2160 |
| Device Type | Conference camera |
| Optical Zoom | 20 x |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | Motorized zoom |
| Color | White |
| Digital Zoom | 80 |
| Focus Adjustment | Automatic, manual |
| Digital Video Format | H.264, H.265 |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 3840 x 2160, 640 x 360 |
| Focal Length | 4.4 mm - 88 mm |
