SPECTRUM BASED 100GBE 1U 11842043
SKU
11842043
Category: Hubs & Switches
- Primary Information

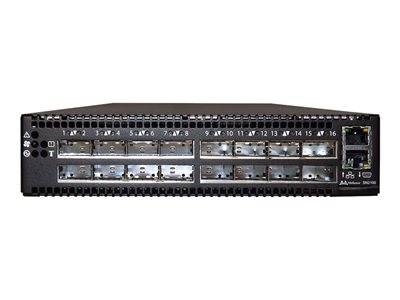

Product Description: Mellanox Spectrum SN2100 - switch - 16 ports - managed - rack-mountable Device Type: Switch - 16 ports - L3 - managed Enclosure Type: Back to front airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 16 x 100 Gigabit QSFP28 Performance: Switching capacity: 3.2 Tbps ¦ Latency: 300 µs Capacity: Multicast entries (Layer 2): 256000 ¦ Virtual interfaces (VLANs): 4000 Jumbo Frame Support: 9216 bytes Routing Protocol: BGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, e-mail notification, non blocking ports, PFC, event notification Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz Power: AC 120/230 V Dimensions (WxDxH): 7.9 in x 27 in x 1.7 in Weight: 24.25 lbs - General
Device Type: Switch - 16 ports - L3 - managed Enclosure Type: Back to front airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 16 x 100 Gigabit QSFP28 Performance: Switching capacity: 3.2 Tbps ¦ Latency: 300 µs Capacity: Multicast entries (Layer 2): 256000 ¦ Virtual interfaces (VLANs): 4000 Jumbo Frame Support: 9216 bytes Routing Protocol: BGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, e-mail notification, non blocking ports, PFC, event notification Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz - Expansion / Connectivity
Interfaces: 16 x 100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Voltage Required: AC 120/230 V Power Consumption Operational: 175 Watt - Miscellaneous
Rack Mounting Kit: Optional Compliant Standards: RoHS - Software / System Requirements
Software Included: Cumulus Linux - Dimensions & Weight
Width: 7.9 in Depth: 27 in Height: 1.7 in Weight: 24.25 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222612 |
| Part# | MNX-MSN2100-CB2FC-11842043 |
| MFG Part# | MSN2100-CB2FC |
| UPC | 813917020944 |
| Device Type | Switch - 16 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Remote Management Protocol | CLI, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet |
