SPM NCNR STD LP 4PORT 10GBASE-T INTEL XL710 AND X557 7321806
SKU
7321806
CA$920.78
Peripheral, Std LP 4-port 10G RJ45, Intel XL710+ X557 (Retail Pack), Standard LP 4-port 10GbaseT, Intel XL710 and X557
Category: Network Adapters
- Primary Information

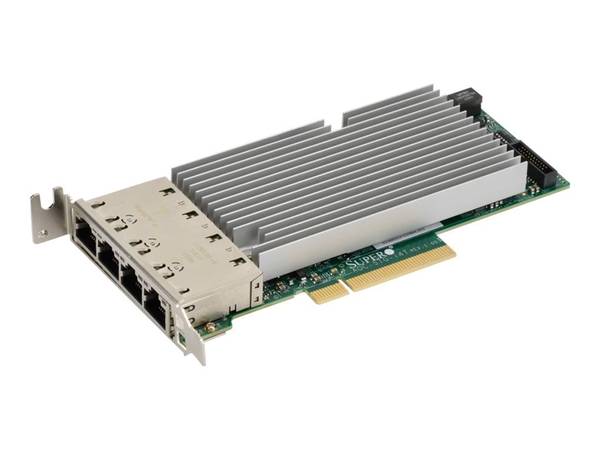

Product Description: Supermicro AOC-STG-i4T - network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 4 Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 3.0 x8 PCI Specification Revision: PCIe 3.0 Ports: 10Gb Ethernet x 4 Dimensions (WxDxH): 5.9 in x 2.7 in Cabling Type: Ethernet 10GBase-T Data Link Protocol: 10GbE Data Transfer Rate: 10 Gbps Capacity: Tagged VLANs: 4096 Network / Transport Protocol: TCP/IP, UDP/IP, iSCSI Processor: Intel X710 / X557 Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) System Requirements: Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) Designed For: SuperServer 5018D-FN4T - General
Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 3.0 x8 PCI Specification Revision: PCIe 3.0 - Networking
Ports: 10Gb Ethernet x 4 Connectivity Technology: Wired Cabling Type: Ethernet 10GBase-T Data Link Protocol: 10 Gigabit Ethernet Data Transfer Rate: 10 Gbps Capacity: Tagged VLANs: 4096 Network / Transport Protocol: TCP/IP, UDP/IP, iSCSI Remote Management Protocol: SNMP, RMON Features: Flow control, load balancing, VLAN support, packet filtering, Accelerated iSCSI, VMDq, teaming support, PXE support, LSO, SR-IOV, tagged VLAN, checksum offload support, MSI-X, iSCSI remote boot, SNMP support, TCP/IP checksum offload, UDP/IP checksum offload, VXLAN, NVGRE, Intel Flow Director Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP) - Processor / Memory
Processor: Intel X710 / X557 - Expansion / Connectivity
Interfaces: 4 x 10GBase-T - RJ-45 - Miscellaneous
Compliant Standards: RoHS - Power
Power Consumption Operational: 19.8 Watt - Software / System Requirements
Software Included: Intel PROSet OS Required: Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) - Dimensions & Weight
Depth: 5.9 in Height: 2.7 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F - Compatibility Information
Designed For: Supermicro SuperServer 5018D-FN4T - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 43201404 |
| Part# | SPM-AOC-STG-I4T-O |
| MFG Part# | AOC-STG-I4T-O |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | RMON, SNMP |
