STARTECH 1-PORT 2.5GBE M.2 NETWORK CARD, MULTI-GIGABIT SPEEDS (2.5G/1G/100M/10M), NBASE-T (802.3BZ) NIC, PCIE ETHERNET INTERFACE M.2 2280, FOR SFF/DES 7503949
SKU
7503949
CA$111.99

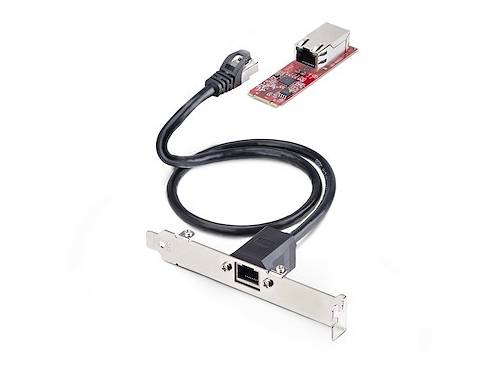

1-Port 2.5GbE M.2 Network Card; Multi-gigabit speeds (2.5G/1G/100M/10M) - NBASE-T (802.3bz) NIC; PCIe Ethernet Card M.2 2280; B/M key compatible - Compact design for SFF/desktop PCs - Incl. 2ft Cat6 adapter; Full/low profile brackets - Windows/Linux
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 1-Port 2.5GbE M.2 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M) - NBASE-T (802.3bz), PCIe Ethernet M.2 2280, B/M Key - NIC for SFFs/Desktop PCs, Includes 2ft Cat6 adapter, Full/Low Brackets (MR12GI-NETWORK-CARD) - network adapter - M.2 2280 (B+M Key) - 10/100/1000/2500Base-T x 1 - TAA Compliant Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: M.2 2280 (B+M Key) PCI Specification Revision: PCIe 2.0 Ports: 10/100/1000/2500Base-T x 1 Dimensions (WxDxH): 0.6 in x 0.9 in x 3.1 in Weight: 0.53 oz Cabling Type: Ethernet 2.5GBase-T, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE Data Transfer Rate: 2.5 Gbps Capacity: Jumbo frame size: 9000 Processor: 1 x Intel I225-V Compliant Standards: IEEE 802.3bz, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az, IEEE 1588v1 Color: Red System Requirements: Linux 5.8.x or later (LTS versions only), Microsoft Windows 10 / 11, VMware ESXi 7.0, Microsoft Windows Server 2019, Microsoft Windows Server 2022 TAA Compliant: Yes Manufacturer Warranty: 2-year warranty - General
Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: M.2 2280 (B+M Key) PCI Specification Revision: PCIe 2.0 - Networking
Ports: 10/100/1000/2500Base-T x 1 Connectivity Technology: Wired Cabling Type: Ethernet 2.5GBase-T, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet Data Transfer Rate: 2.5 Gbps Capacity: Jumbo frame size: 9000 Status Indicators: Link/activity/speed Features: Auto-negotiation, Intel vPro Technology support, PXE boot, WOL, VLAN support, VLAN Tagging, half duplex mode, ECC memory, QoS, AVB, EEE, PTP, Auto MDIX, full duplex mode, promiscuous mode, bus powered Compliant Standards: IEEE 802.3bz, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az, IEEE 1588v1 - Processor / Memory
Processor: 1 x Intel I225-V - Expansion / Connectivity
Interfaces: 1 x 10/100/1000/2500Base-T - RJ-45 - Miscellaneous
Included Accessories: Low-profile bracket, full-height bracket, M3x2 screw Cables Included: 1 x CAT6 adapter cable (external) Compliant Standards: Cat5e, CAT 6, WEEE Color: Red TAA Compliant: Yes - Software / System Requirements
OS Required: Linux 5.8.x or later (LTS versions only), Microsoft Windows 10 / 11, VMware ESXi 7.0, Microsoft Windows Server 2019, Microsoft Windows Server 2022 - Dimensions & Weight
Width: 0.6 in Depth: 0.9 in Height: 3.1 in Weight: 0.53 oz - Dimensions & Weight (Shipping)
Shipping Width: 1.2 in Shipping Depth: 6.7 in Shipping Height: 5.6 in Shipping Weight: 6 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-MR12GI-NETWORK-CARD |
| MFG Part# | MR12GI-NETWORK-CARD |
| UPC | 65030901611 |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.5 Gbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Color | Red |
