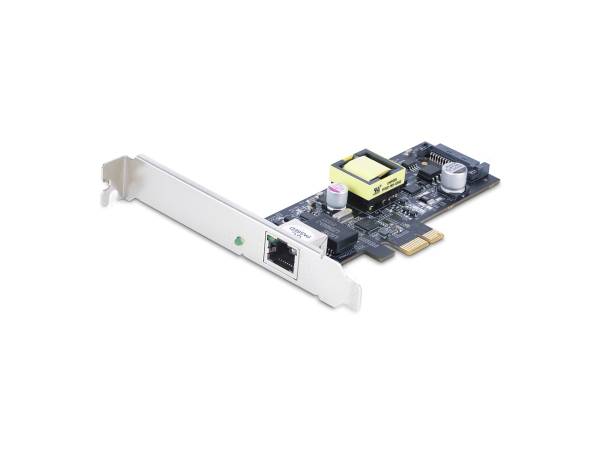

STARTECH 1-PORT 2.5GBPS NBASE-T POE NETWORK CARD, INTEL I225-V, 802.3AF/AT POE+ MULTI-GIGABIT NIC, PCI EXPRESS SERVER LAN CARD, SATA POWERED ETHERNET 7443757
SKU
7443757
CA$147.99
2.5Gbps PoE network card w/ Intel I225V supports 802.3af/at PoE+ up to 30W PSE and 25.5W PD at 48V DC; NBASE-T, Multi-Gigabit Ethernet, Intel vPro, PXE boot, PCI Express 2.0; Incl. low-profile bracket; Supports Windows, Linux, VMware ESXI
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 1-Port 2.5Gbps NBASE-T PoE Network Card, Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, SATA Powered Desktop Ethernet Interface - Supports Windows, Linux, VMware ESXI (PR12GIP-NETWORK-CARD) - network adapter - PCIe 2.0 - 2.5GBase-T (PoE+) x 1 Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 PCI Specification Revision: PCIe 2.0 Ports: 2.5GBase-T (PoE+) x 1 Dimensions (WxDxH): 0.6 in x 4.7 in x 2.1 in Weight: 2.19 oz Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE Data Transfer Rate: 2.5 Gbps Capacity: Jumbo frame size: 9000 Processor: Intel I225-V Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1as, IEEE 802.1x, IEEE P802.3az, IEEE 1588v1 Color: Black System Requirements: Microsoft Windows 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux 5.8.x or later (LTS versions only), VMware ESXi 7.0 Manufacturer Warranty: 2-year warranty - General
Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 PCI Specification Revision: PCIe 2.0 - Networking
Ports: 2.5GBase-T (PoE+) x 1 Connectivity Technology: Wired Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet Data Transfer Rate: 2.5 Gbps Capacity: Jumbo frame size: 9000 Status Indicators: Link/activity/speed Features: Intel vPro Technology support, PSE, PXE boot, WOL, VLAN support, full duplex capability, auto-negotiation, Auto MDIX, bus powered, QoS, PTP, EEE Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1as, IEEE 802.1x, IEEE P802.3az, IEEE 1588v1 - Processor / Memory
Processor: Intel I225-V - Expansion / Connectivity
Interfaces: 2 x 2.5 GBase-T (PoE+) - RJ-45 - Miscellaneous
Included Accessories: Low-profile bracket Compliant Standards: RoHS, WEEE Color: Black - Software / System Requirements
OS Required: Microsoft Windows 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux 5.8.x or later (LTS versions only), VMware ESXi 7.0 - Dimensions & Weight
Width: 0.6 in Depth: 4.7 in Height: 2.1 in Weight: 2.19 oz - Dimensions & Weight (Shipping)
Shipping Width: 1.2 in Shipping Depth: 6.7 in Shipping Height: 5.5 in Shipping Weight: 2.47 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 5 - 90% RH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-PR12GIP-NETWORK-CARD |
| MFG Part# | PR12GIP-NETWORK-CARD |
| UPC | 65030903493 |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.5 Gbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Color | Black |
