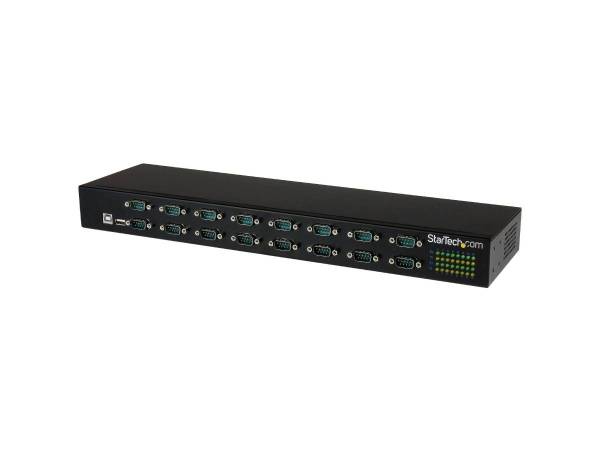

STARTECH 16-PORT USB-TO-SERIAL ADAPTER HUB, USB TO RS232 SERIAL PORT ADAPTER W/ DAISY CHAIN, RACKMOUNT, RS232 MULTIPLEXER, SERIAL CONVERTER - TERMINUS 5662756
SKU
5662756
CA$725.99
Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis, and daisy chain multiple hubs for a scalable solution - 16-Port USB-to-Serial Adapter Hub - USB to RS232 port adapter with Terminus chipset and COM port retention
Category: Network Adapters
- Primary Information
Product Description: StarTech.com USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub (ICUSB23216FD) - serial adapter - USB 2.0 - RS-232 x 16 Device Type: Serial adapter Form Factor: Rack-mountable Interface (Bus) Type: USB 2.0 Ports: RS-232 x 16 Dimensions (WxDxH): 4.7 in x 16.9 in x 1.8 in Weight: 3.35 lbs Localization: Australia, North America, United Kingdom, Europe Data Link Protocol: RS-232 Data Transfer Rate: 480 Mbps Processor: FTDI FT232RL Color: Black Power: AC 120/230 V / DC 12 V System Requirements: Microsoft Windows CE 4.2, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Microsoft Windows XP Embedded, Microsoft Windows 98 Second Edition, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux Kernel 3.0 or later, Linux LTS versions only Manufacturer Warranty: 2-year warranty - General
Device Type: Serial adapter Form Factor: Rack-mountable Interface (Bus) Type: USB 2.0 Localization: Australia, North America, United Kingdom, Europe - Networking
Ports: RS-232 x 16 Connectivity Technology: Wired Data Link Protocol: RS-232 Data Transfer Rate: 480 Mbps Status Indicators: Transmit, receive Features: 128-byte FIFO - Processor / Memory
Processor: FTDI FT232RL - Expansion / Connectivity
Interfaces: 16 x RS-232 - 9 pin D-Sub (DB-9) (front) ¦ 1 x USB 2.0 - 4 pin USB Type B (front) - Miscellaneous
Included Accessories: 2 rack mount brackets, rack mounting screws, DIN rail mounting screws, DIN rail mounting brackets Cables Included: 1 x USB cable ¦ 1 x power adapter Compliant Standards: FCC, RoHS, WEEE, RCM Color: Black - Power
Voltage Required: AC 120/230 V / DC 12 V - Software / System Requirements
Software Included: Drivers & Utilities OS Required: Microsoft Windows CE 4.2, Microsoft Windows CE 5.0, Microsoft Windows CE 6.0, Microsoft Windows XP Embedded, Microsoft Windows 98 Second Edition, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux Kernel 3.0 or later, Linux LTS versions only - Dimensions & Weight
Width: 4.7 in Depth: 16.9 in Height: 1.8 in Weight: 3.35 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 176 °F Humidity Range Operating: 5 - 85% - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-ICUSB23216FD |
| MFG Part# | ICUSB23216FD |
| UPC | 65030864763 |
| Device Type | Serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 480 Mbps |
| Form Factor | Rack-mountable |
| Data Link Protocol | RS-232 |
| Color | Black |
