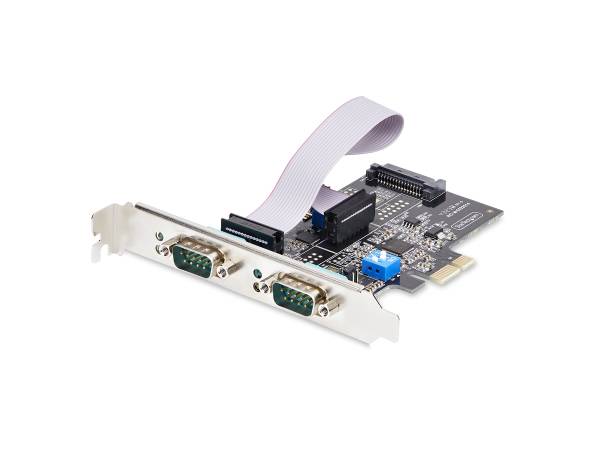

STARTECH 2-PORT SERIAL PCIE CARD, DUAL-PORT PCI EXPRESS TO RS232/RS422/RS485 (DB9) SERIAL CARD, 16C1050 UART, ESD PROTECTION, WINDOWS/LINUX, TAA-COMPL 7437093
SKU
7437093
CA$129.99
2-Port PCIe Serial Card features on-board DIP switches allowing each DB9 port to operate in RS-232/RS-422/RS-485 independently; Jumpers provide the option of 12V/5V/RI @ 1.5A per port; Includes Low-Profile Brackets; Supports Windows/Linux
Category: Others Accessories
- Primary Information
Product Description: StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, TAA-Compliant, Windows/Linux, TAA Compliant - Level-4 ESD Protection (2S232422485-PC-CARD) - serial adapter - PCIe - RS-232 x 2 - TAA Compliant Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 2.0 Ports: RS-232 x 2 Dimensions (WxDxH): 4 in 0.6 in Length: 4.1 in Weight: 2.01 oz Data Link Protocol: RS-232, RS-422, RS-485 Data Transfer Rate: 921.6 Kbps Compliant Standards: 16C450 UART, 16C550 UART, 16C950 UART Color: Black System Requirements: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux 2.6.13 or later TAA Compliant: Yes Manufacturer Warranty: 2-year warranty - General
Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 2.0 - Networking
Ports: RS-232 x 2 Connectivity Technology: Wired Data Link Protocol: RS-232, RS-422, RS-485 Data Transfer Rate: 921.6 Kbps Status Indicators: Data, status Features: 256-byte FIFO, hardware flow control, software flow control, 15KV ESD Protector (air-gap discharge), 15KV ESD Protector (HBM), 8KV ESD Protector (contact discharge) Compliant Standards: 16C450 UART, 16C550 UART, 16C950 UART - Expansion / Connectivity
Interfaces: 2 x RS-232 - 9 pin D-Sub (DB-9) - male (external) - Miscellaneous
Included Accessories: 2 x low-profile brackets Cables Included: 1 x serial panel (internal) - 1 ft Compliant Standards: RoHS Color: Black TAA Compliant: Yes - Software / System Requirements
OS Required: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux 2.6.13 or later - Dimensions & Weight
Width: 4 in Height: 0.6 in Length: 4.1 in Weight: 2.01 oz - Dimensions & Weight (Shipping)
Shipping Width: 5.6 in Shipping Depth: 6.7 in Shipping Height: 1.2 in Shipping Weight: 4.94 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 158 °F Humidity Range Operating: 20 - 80% RH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211600
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211600 |
| Part# | STC-2S232422485-PC-CARD |
| MFG Part# | 2S232422485-PC-CARD |
| UPC | 65030900270 |
| Device Type | Serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Length | 4.1 in |
| Color | Black |
