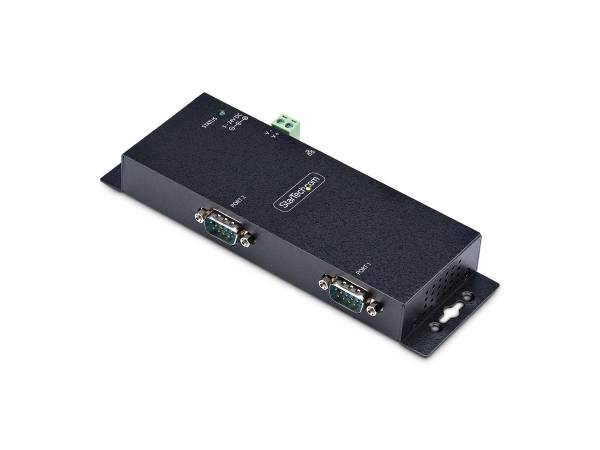

STARTECH 2-PORT SERIAL TO ETHERNET ADAPTER, IP SERIAL DEVICE SERVER FOR RS232 DEVICES, WALL/DIN RAIL MOUNTABLE, METAL HOUSING, RJ45 LAN TO DB9 SERIAL 8027859
SKU
8027859
CA$345.99
2-PORT SERIAL TO ETHERNET DEVICE SERVER; IDEAL FOR REMOTE RS232 DEVICE MANAGEMENT OVER IP NETWORK - SUPPORTS TELNET/TCP SERVER/TCP CLIENT/UDP - WINDOWS-BASED SOFTWARE FOR VCOMS AND DEVICE MANAGEMENT - DC JACK/TERMINAL BLOCK POWER; ESD LEVEL 4
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 2P Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - device server - TAA Compliant Device Type: Device server Form Factor: Wall / DIN rail mountable Ports Qty: 2 Data Link Protocol: Ethernet, Fast Ethernet, RS-232 Included Accessories: Wall mounting kit, DIN-rail mounting kit OS Required: Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 Power: AC 100-240 V TAA Compliant: Yes Dimensions (WxDxH): 2.4 in x 7 in x 0.9 in Weight: 11.11 oz Manufacturer Warranty: 2-year warranty - General
Device Type: Device server Width: 2.4 in Depth: 7 in Height: 0.9 in Weight: 11.11 oz Enclosure Color: Black - Networking
Form Factor: Wall / DIN rail mountable Ports Qty: 2 Connectivity Technology: Wired Data Transfer Rate: 921.6 Kbps Data Link Protocol: Ethernet, Fast Ethernet, RS-232 Network / Transport Protocol: Telnet, TCP, UDP Routing Protocol: Static IP routing Remote Management Protocol: Telnet, UDP Status Indicators: Link/activity, power, transmit, receive Features: Metal housing, 15 KV Electrostatic Discharge Protection, 8 KV Contact Electrostatic Discharge Protection, auto-negotiation, flow control, adjustable parity, manageable, auto-uplink (auto MDI/MDI-X), full duplex capability Compliant Standards: IEEE 802.3u, IEEE 802.3i - Expansion / Connectivity
Interfaces: 2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 ¦ 1 x - terminal block - Miscellaneous
Included Accessories: Wall mounting kit, DIN-rail mounting kit Compliant Standards: EIA/TIA-232 TAA Compliant: Yes - Power
Power Device: External power adapter Voltage Required: AC 100-240 V Power Consumption Operational: 15 Watt - Software / System Requirements
OS Required: Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 - Dimensions & Weight (Shipping)
Shipping Width: 6.5 in Shipping Depth: 9.5 in Shipping Height: 2.2 in Shipping Weight: 21.16 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 95% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-I23-SERIAL-ETHERNET |
| MFG Part# | I23-SERIAL-ETHERNET |
| UPC | 65030905992 |
| Device Type | Device server |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Form Factor | Wall / DIN rail mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Remote Management Protocol | Telnet, UDP |
