STARTECH 4-BAY BACKPLANE FOR U.2 DRIVES, FITS IN A 5.25INCH BAY, MOBILE RACK ENCLOSURE FOR 2.5INCH U.2 (SFF-8639) NVME SSDS, REMOVEABLE DRIVE TRAYS 7437094
SKU
7437094
CA$578.99
4-bay backplane adds four U.2 (SFF-8639) NVMe drive bays to desktop/server; Supports 7mm to 15mm 2.5 U.2 NVMe SSDs; Up to 32Gbps; Lockable and removeable drive trays/caddies; Works with any operating system; 2x keys incl.; Includes 4x Mini-SAS Cable
Category: Others Accessories
- Primary Information

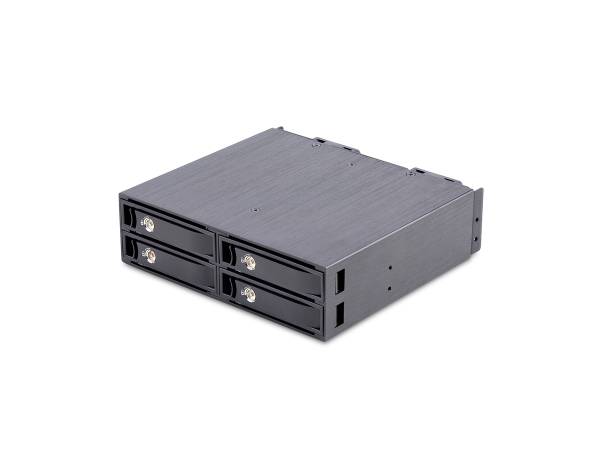

Product Description: StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays - Backplane with Fans (4U2525-SAS-BACKPLANE) - storage enclosure Device Type: Storage enclosure Color: Black Installed Devices / Modules Qty: 0 (installed) / 4 (max) Supported Drives: PCIe (NVMe) / U.2 Built-in Devices: 2 x 35 mm fans Hard Drive: No HDD Dimensions (WxDxH): 5.5 in x 5.7 in x 1.7 in Weight: 24.69 oz Manufacturer Warranty: 2-year warranty - General
Device Type: Storage enclosure Enclosure Color: Black - Chassis
Built-in Devices: 2 x 35 mm fans Installed Devices / Modules Qty: 0 Supported Devices / Modules Qty: 4 Supported Drives: PCIe (NVMe) / U.2 - Processor
CPU: No CPU - Hard Drive
Type: No HDD - Expansion / Connectivity
Expansion Bays: 4 (total) / 4 (free) x hot-swap - 2.5" Interfaces: 4 x SAS - 36 pin Mini SAS ¦ 1 x SATA - 15 pin Serial ATA power - Miscellaneous
Features: Key lock, 4Kn drive compatible, aluminum housing, 2.47 CFM airflow, up to 32 Gbps data transfer, 500 cycles insertion rating, fan speed switch Cables Included: 4 x mini SAS HD cable - 2 ft MTBF: 30,000 hours Compliant Standards: RoHS, WEEE Included Accessories: 2 x keys, 8 frame mounting screws, 16 drive mounting screws - Dimensions & Weight
Width: 5.5 in Depth: 5.7 in Height: 1.7 in Weight: 24.69 oz - Dimensions & Weight (Shipping)
Shipping Width: 8.3 in Shipping Depth: 7.1 in Shipping Height: 5.2 in Shipping Weight: 2.43 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 5 - 65% RH (non-condensing) Sound Emission: 21.3 dBA - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211600
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211600 |
| Part# | STC-4U2525-SAS-BACKPLANE |
| MFG Part# | 4U2525-SAS-BACKPLANE |
| UPC | 65030900133 |
| Device Type | Storage enclosure |
| Type | No HDD |
| Color | Black |
