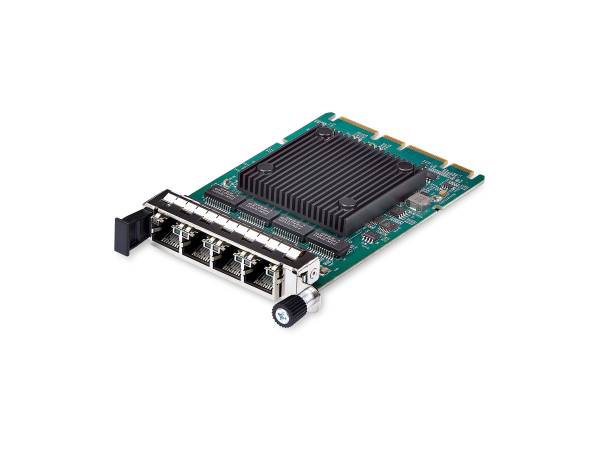

STARTECH 4-PORT RJ45 GIGABIT OCP 3.0 SERVER NETWORK CARD W/INTEL I350-AM4, SFF 4C+ COMPATIBLE 7913288
SKU
7913288
CA$476.99
4-PORT RJ45 GIGABIT OCP 3.0 SERVER NETWORK CARD W/INTEL I350-AM4 - OCP FOR SIZE REDUCTION/PORT DENSITY/HOT-SWAP - SFF 4C+ COMPATIBLE/MULTI-SPEED ETHERNET 1 G/100 M/10 M/LAN TRANSFORMERS - NIC SUPPORTS SR-IOV/INTEL VPRO/PXE/9K JUMBO FRAMES/WOL/VLAN
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card, Intel I350 - network adapter - OCP 3.0 - Gigabit Ethernet x 4 Device Type: Network adapter Form Factor: Plug-in card Interface (Bus) Type: Open Compute Project mezzanine (OCP) 3.0 PCI Specification Revision: PCIe 3.0 Ports: Gigabit Ethernet x 4 Dimensions (WxDxH): 3.3 in x 5.2 in x 0.6 in Weight: 3.53 oz Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Max Transfer Distance: 330 ft Data Transfer Rate: 1 Gbps Capacity: Jumbo frame size: 9000 Processor: Intel I350-AM4 Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1x, IEEE P802.3az, SFF-TA-1002 Color: Silver, green System Requirements: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 2.4.x or later (LTS versions only), VMware ESXi 7.x Manufacturer Warranty: 2-year warranty Designed For: P/N: 45PATCH10BK, 45PATCH6BK, N6PATCH10BK, N6PATCH5BK, N6PATCH5BL - General
Device Type: Network adapter Form Factor: Plug-in card Interface (Bus) Type: Open Compute Project mezzanine (OCP) 3.0 PCI Specification Revision: PCIe 3.0 - Networking
Ports: Gigabit Ethernet x 4 Connectivity Technology: Wired Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Data Transfer Rate: 1 Gbps Max Transfer Distance: 330 ft Capacity: Jumbo frame size: 9000 Status Indicators: Link/activity, link/speed Features: Intel vPro Technology support, PXE boot, VLAN support, SR-IOV, hot swappable, EEE, auto-negotiation, WOL, built-in heatsink, flow control, QoS, Link Aggregation, auto-uplink (auto MDI/MDI-X), full duplex capability, promiscuous mode, bus powered Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1x, IEEE P802.3az, SFF-TA-1002 - Processor / Memory
Processor: Intel I350-AM4 - Expansion / Connectivity
Interfaces: 4 x 1000Base-T - RJ-45 - Miscellaneous
Compliant Standards: WEEE, RoHS Color: Silver, green - Power
Power Consumption Operational: 4.65 Watt - Software / System Requirements
OS Required: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 2.4.x or later (LTS versions only), VMware ESXi 7.x - Dimensions & Weight
Width: 3.3 in Depth: 5.2 in Height: 0.6 in Weight: 3.53 oz - Dimensions & Weight (Shipping)
Shipping Width: 5.7 in Shipping Depth: 8.6 in Shipping Height: 1.4 in Shipping Weight: 6 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 90% RH - Compatibility Information
Designed For: P/N: 45PATCH10BK, 45PATCH6BK, N6PATCH10BK, N6PATCH5BK, N6PATCH5BL - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-OR41GI-NETWORK-CARD |
| MFG Part# | OR41GI-NETWORK-CARD |
| UPC | 65030908146 |
| Max Transfer Distance | 330 ft |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | Plug-in card |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Color | green, Silver |
