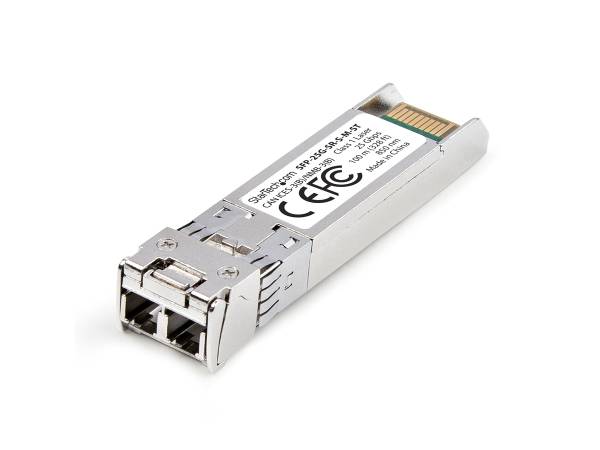

STARTECH MSA-COMPLIANT SFP-25G-SR-S SFP28 MODULE, 25GBPS MULTIMODE FIBER (MMF), 100M (328FT), LC CONNECTOR, 850NM, 25 GIGABIT OPTICAL TRANSCEIVER W/ D 7449524
SKU
7449524
CA$151.99
MSA-Compliant SFP-25G-SR-S fiber transceiver - 25GbE connectivity up to 100m - For data migrations, large-scale transfers, high-capacity storage - 25GBASE-SR SFP28, 25Gbps, MMF, LC connector, 850nm, DDM/DOM Support, Uncoded - Lifetime warranty
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com MSA-Compliant SFP-25G-SR-S SFP28 Module, 25Gbps Multimode Fiber (MMF), 100m (328ft), LC Connector, 850nm, 25 Gigabit Optical Transceiver w/ DDM/DOM - SFP28 transceiver module - 25GbE Device Type: SFP28 transceiver module - LC multi-mode Form Factor: Plug-in module Cabling Type: 25GBase-SR Data Transfer Rate: 25.78 Gbps Optical Wave Length: 850 nm Data Link Protocol: 25GbE Max Transfer Distance: 328 ft Dimensions (WxDxH): 0.6 in x 2.2 in x 0.3 in Weight: 7.05 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: SFP28 transceiver module Form Factor: Plug-in module - Networking
Connectivity Technology: Wired Cabling Type: 25GBase-SR Data Link Protocol: 25GbE Data Transfer Rate: 25.78 Gbps Optical Wave Length: 850 nm Max Transfer Distance: 328 ft Features: Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), short range Compliant Standards: IEEE 802.3by - Expansion / Connectivity
Interfaces: 1 x Ethernet 25GBase-SR - LC multi-mode female x 2 - Miscellaneous
MTBF: 4,020,594 hours Compliant Standards: FCC, RoHS, Laser Class 1, WEEE, MSA, CAN ICES-3 Class B, NMB-003 Class B - Power
Power Consumption Operational: 1.2 Watt - Dimensions & Weight
Width: 0.6 in Depth: 2.2 in Height: 0.3 in Weight: 7.05 oz - Dimensions & Weight (Shipping)
Shipping Width: 3.5 in Shipping Depth: 4.5 in Shipping Height: 1.2 in - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 158 °F Humidity Range Operating: 85% RH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-SFP-25G-SR-S-M-ST |
| MFG Part# | SFP-25G-SR-S-M-ST |
| UPC | 65030905374 |
| Max Transfer Distance | 328 ft |
| Device Type | SFP28 transceiver module |
| Connectivity Technology | Wired |
| Data Transfer Rate | 25.78 Gbps |
| Form Factor | Plug-in module |
| Data Link Protocol | 25GbE |
