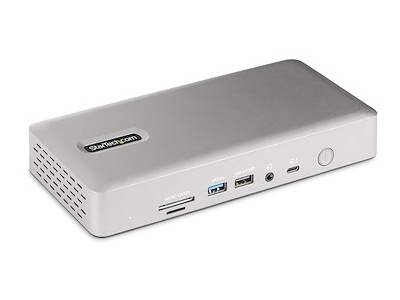

STARTECH THUNDERBOLT 4 MULTI-DISPLAY DOCKING STATION, QUAD/TRIPLE/DUAL MONITOR DOCK - 2X HDMI/2X DISPLAYPORT, 7X USB HUB, 2.5GB ETHERNET, 98W POWER DE 7503948
SKU
7503948
CA$461.99
Thunderbolt 4 Certified docking station 98W PD - 2x HDMI and 2x DisplayPort supports up to Quad 4K 60Hz w/Intel 12th Gen CPU w/DP 1.4 and DSC - Extended dual monitors on Apple M1/M2/M3 Max/Pro MacBooks; Single Display on Apple M1/M2/M3 - 7xUSB/2.5GbE
Category: Port Replicators & Docks
- Primary Information
Product Description: StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock, 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5 Gigabit Ethernet, 98W Power Delivery, for Windows/MacBook - TB4 Host Cable (132N-TB4USB4DOCK) - docking station - Thunderbolt 4 - 2 x DP, 2 x HDMI - 1GbE Product Type: Docking station Docking Interface: Thunderbolt 4 Video Interfaces: 2 x DP, 2 x HDMI Dimensions (WxDxH): 8.3 in x 3.8 in x 1.3 in Weight: 7.05 oz Color: Space gray Networking: Gigabit Ethernet Power: Power adapter AC 100-240 V 180 Watt Power Provided (DC 20 V) Manufacturer Warranty: 3-year warranty - General
Product Type: Docking station Width: 8.3 in Depth: 3.8 in Height: 1.3 in Weight: 7.05 oz Enclosure Color: Space gray - Video
Max Resolution Details: 7680 x 4320 - 60 Hz (Single Display) ¦ 3810 x 2160 - 60 Hz (Dual Display) ¦ 3810 x 2160 - 60 Hz (Triple Display) ¦ 3810 x 2160 - 60 Hz (Quad Display) - Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Compliant Standards: USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 - Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x SD / MMC Memory Card ¦ 1 (total) / 1 (free) x microSD Interfaces: 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-A 2.0 - 4 pin USB Type A ¦ 2 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 - Miscellaneous
Input Device: microSD card reader, MMC card reader, SD card reader Cables Included: 1 x Thunderbolt 4 cable - external - 3.3 ft Features: Full duplex support, kensington security slot, LED indicator, Preboot Execution Environment (PXE) support, UASP transfer protocol, up to 40Gbps data transfer, 98W power delivery Compliant Standards: DisplayPort 1.4, RoHS, Thunderbolt 4, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0 - Power
Power Device: Power adapter Voltage Required: AC 100-240 V Power Provided: 180 Watt Voltage Provided: DC 20 V - System Requirements
OS Required: Windows 11, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Sonoma 14.0, Apple macOS Ventura 13.0, Windows 10 - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Dimensions & Weight (Shipping)
Shipping Width: 9.1 in Shipping Depth: 5.7 in Shipping Height: 3.5 in Shipping Weight: 2.65 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211503
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211503 |
| Part# | STC-132N-TB4USB4DOCK |
| MFG Part# | 132N-TB4USB4DOCK |
| UPC | 65030899277 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Product Type | Docking station |
| Color | Space gray |
| Video Interfaces | 2 x DP, 2 x HDMI |
