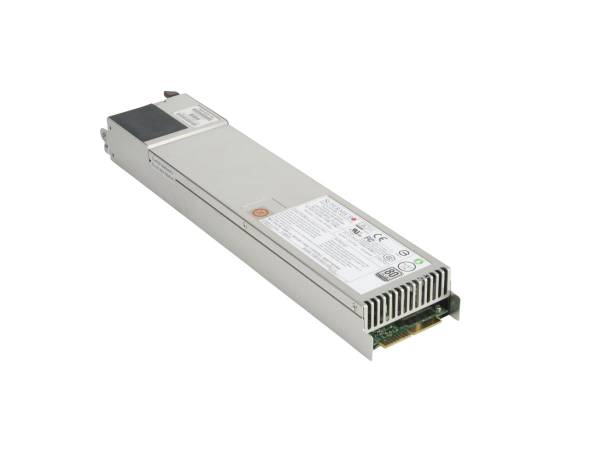

SUPERMICRO - 920W 1U REDUNDANT PWS W/ QUIET MODE 5925211
SKU
5925211
CA$491.41
Supermicro 920W 1U Redundant Power Supply (PWS-920P-SQ) - Output Type Gold Finger (19 Pair Connector) - 80 Plus Platinum 91% Peak - MTBF 100000 hours - 1 year warranty
Category: Power Supplies
- Primary Information
Power / Device Type: Power Supply Power Device / Form Factor: 1U Power / Voltage Required: 100-240V Power / Provided (W): 920 Watt Output Connector(s): Gold Finger (19 Pair Connector) Efficiency: 91% 80 PLUS Certification: 80 PLUS Platinum MTBF: >100000 hours For Use With: CSE-216BA-R920LPB, CSE-216BA-R920UB, CSE-216BA-R920WB, CSE-216BAC-R920LPB, CSE-216BE1C-R920LPB, CSE-216BE1C-R920WB, CSE-216BE2C-R920LPB, CSE-216BE2C-R920WB, CSE-216BE16-R920LPB, CSE-216BE16-R920WB, CSE-216BE26-R920LPB, CSE-216BE26-R920UB, CSE-216BE26-R920WB, CSE-219A-R920WB, CSE-826BA-R920LPB, CSE-826BA-R920UB, CSE-826BA-R920WB, CSE-826BAC4-R920LPB, CSE-826BAC4-R920WB, CSE-826BE1C-R920LPB, CSE-826BE1C-R920WB, CSE-826BE2C-R920LPB, CSE-826BE2C-R920WB, CSE-826BE16-R920UB, CSE-826BE16-R920WB, CSE-826BE26-R920LPB, CSE-826BE26-R920UB, CSE-826BE26-R920WB, CSE-829BTQ-R920WB, CSE-835TQ-R921B, CSE-836BA-R920B, CSE-836BE16-R920B, CSE-836BE26-R920B, CSE-846BA-R920B, CSE-846BE16-R920B, CSE-846BE26-R920B Model: PWS-920P-SQ Width: 76 Mm Depth: 336 Mm Height: 40 Mm Service & Support Type: 1 year warranty Features: PMBus 1.2 Support for Remote Management; Flexible Redundancy Control; 80 Plus Platinum; Supermicro Certified; Min Operating Temperature: 0 Celsius Max Operating Temperature: 50 Celsius Humidity Range Operating: 20% to 90% (non-condensing) - Green Product Information
Proposition 65 Warning: Y - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121004
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 39121004 |
| Part# | SPM-PWS-920P-SQ |
| MFG Part# | PWS-920P-SQ |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 91% |
| Power / Device Type | Power Supply |
| Power Device / Form Factor | 1U |
