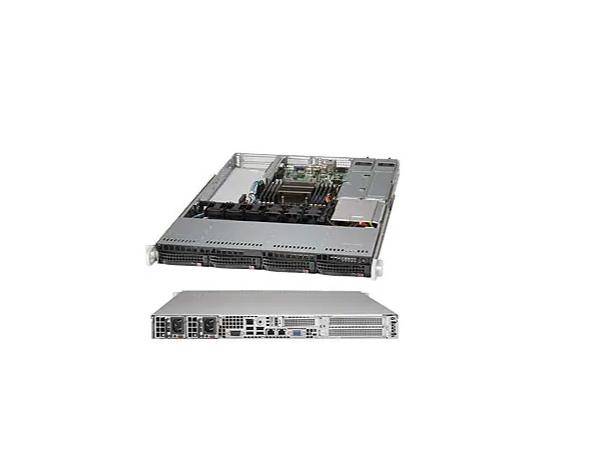

SUPERMICRO BLACK 1U SC815 WIO CHASSIS W/ 6030677
SKU
6030677
CA$1,141.88
Chassis, Black 1U SC815 WIO Chassis W/ Redundant 500W, Black -support max. motherboard size - E-ATX 12 x 13; Optimized for WIO (W series) motherboards
Category: System Cabinets
- Primary Information
Product Description: Supermicro SC815 TQ-R500WB - rack-mountable - 1U - extended ATX Product Type: System cabinet Form Factor: Rack-mountable - 1U Color: Black Supported Motherboards: Extended ATX Server Storage Bays: SATA/SAS - hot-swap System Cabinet Features: SCSI Enclosure Services (SES2) support Power Device: Power supply 500 Watt Power Redundancy: Yes Voltage Required: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 17.2 in x 25.6 in x 1.7 in Manufacturer Warranty: 3-year warranty - General
Form Factor: Rack-mountable - 1U Max Mainboard Size: Extended ATX Supported Motherboards: Extended ATX Front Accessible Bays Qty: 2 Hot-Swap Bays Qty: 4 Server Swappable Drive Interface: SATA/SAS Color: Black Cooling System: Internal: 40 mm fan x 3 ¦ Internal: 40 mm fan mount x 3 System Cabinet Features: SCSI Enclosure Services (SES2) support - Expansion / Connectivity
Expansion Bays: 4 (total) / 4 (free) x hot-swap - 3.5" ¦ 1 (total) / 1 (free) x front accessible - 3.5" Slim Line ¦ 1 (total) / 1 (free) x front accessible - 5.25" Slim Line Expansion Slots: 2 x full-height ¦ 1 x low-profile - Miscellaneous
Included Accessories: Rack mounting kit, 4 x SATA cables, SAS / SATA backplane Compliant Standards: UL, TUV, cUL, EN 60950, IEC 60950, EMC, FCC - Power
Power Device: Power supply Power Redundancy: Yes Power Redundancy Scheme: 1+1 Installed Qty: 2 Max Supported Qty: 2 Voltage Required: AC 120/230 V (50/60 Hz) Power Provided: 500 Watt 80 PLUS Certification: 80 PLUS Platinum - Dimensions & Weight
Width: 17.2 in Depth: 25.6 in Height: 1.7 in - Manufacturer Warranty
Service & Support: Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years - Environmental Parameters
Min Operating Temperature: 50 °F Max Operating Temperature: 95 °F Humidity Range Operating: 8 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201601
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 43201601 |
| Part# | SPM-CSE-815TQ-R500WB |
| MFG Part# | CSE-815TQ-R500WB |
| 80 PLUS Certification | 80 PLUS Platinum |
| Form Factor | Rack-mountable - 1U |
| Product Type | System cabinet |
| Color | Black |
