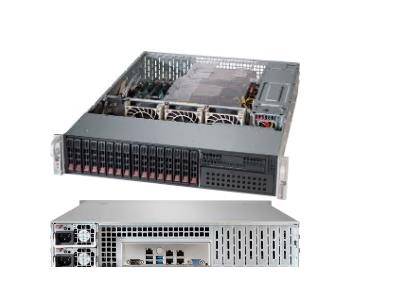

SUPERMICRO BLACK 2U SC213 CHASSIS W/ SAS3 BPN, 6028837
SKU
6028837
CA$1,822.12
Chassis, (EOL)Black 2U SC213 Chassis w/ SAS3 BPN, Redundant 1200W PWS, Black - 2U chassis supports for maximum motherboard sizes - 13.68 x 13, E-ATX 12 x 13, ATX 12 x 10 motherboards
Category: System Cabinets
- Primary Information
Product Description: Supermicro SC213 AC-R1K23LPB - rack-mountable - 2U - enhanced extended ATX Product Type: System cabinet Form Factor: Rack-mountable - 2U Color: Black Built-in Devices: LED panel I/O Connectors: 2 x USB 2.0 - (optional) ¦ 1 x serial - (optional) Supported Motherboards: ATX, Extended ATX, enhanced extended ATX Server Storage Bays: SATA/SAS - hot-swap System Cabinet Features: SCSI Enclosure Services (SES2) support Power Device: Power supply 1200 Watt Power Redundancy: Yes Voltage Required: AC 120/230 V (50 - 60 Hz) Dimensions (WxDxH): 17.2 in x 24.8 in x 3.5 in Manufacturer Warranty: 3-year warranty - General
Form Factor: Rack-mountable - 2U Max Mainboard Size: Enhanced extended ATX Supported Motherboards: ATX, Extended ATX, enhanced extended ATX Front Accessible Bays Qty: 1 Hot-Swap Bays Qty: 16 Server Swappable Drive Interface: SATA/SAS Built-in Devices: LED panel Color: Black Cooling System: Internal: 80 x 80 x 38 mm fan x 3 / 9400 rpm / Pulse-width modulation (PWM) support, hot-swap System Cabinet Features: SCSI Enclosure Services (SES2) support - Expansion / Connectivity
Expansion Bays: 16 (total) / 16 (free) x hot-swap - 2.5" ¦ 1 (total) / 1 (free) x front accessible - 5.25" Expansion Slots: 7 x low-profile Interfaces: 2 x USB 2.0 - (optional) ¦ 1 x serial - DB-9 - (optional) - Miscellaneous
Included Accessories: Mounting rails, SAS / SATA backplane, air shroud Compliant Standards: FCC Class A certified, UL, BSMI, cUL, CB, CCC, CE/EMC - Power
Power Device: Power supply Power Redundancy: Yes Installed Qty: 2 Max Supported Qty: 2 Power Capacity (of Single Unit): 1200 Watt Voltage Required: AC 120/230 V (50 - 60 Hz) Power Provided: 1200 Watt 80 PLUS Certification: 80 PLUS Titanium - Dimensions & Weight
Width: 17.2 in Depth: 24.8 in Height: 3.5 in - Manufacturer Warranty
Service & Support: Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year ¦ Limited warranty - advance parts replacement - 30 days - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 95 °F Humidity Range Operating: 8 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201601
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 43201601 |
| Part# | SPM-213AC-R1K23LPB |
| MFG Part# | CSE-213AC-R1K23LPB |
| 80 PLUS Certification | 80 PLUS Titanium |
| Form Factor | Rack-mountable - 2U |
| Product Type | System cabinet |
| Color | Black |
