SUPERMICRO CSE-836BE1C-R1K03B 5966689
SKU
5966689
CA$2,650.10

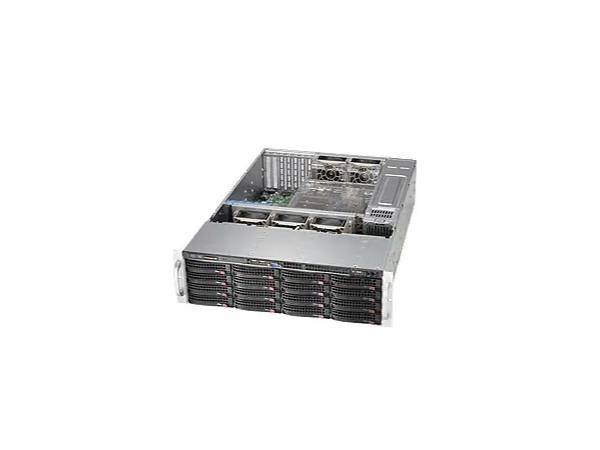

Chassis, Black 3U SC836 Chassis W/ single SAS3 Expander Redundant, Black - supports for maximum motherboard sizes: 13.68 x 13 E-ATX and ATX - Dual and Single Intel and AMD processors
Category: System Cabinets
- Primary Information
Product Description: Supermicro SC836 BE1C-R1K03B - rack-mountable - 3U - enhanced extended ATX Product Type: System cabinet Form Factor: Rack-mountable - 3U Color: Black Supported Motherboards: Enhanced extended ATX Server Storage Bays: SATA/SAS - hot-swap System Cabinet Features: Chassis intrusion detection, SCSI Enclosure Services (SES2) support Power Device: Power supply 1000 Watt Power Redundancy: Yes Voltage Required: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 17.2 in x 25.5 in x 5.2 in Manufacturer Warranty: 3-year warranty - General
Form Factor: Rack-mountable - 3U Max Mainboard Size: Enhanced extended ATX Supported Motherboards: Enhanced extended ATX Hot-Swap Bays Qty: 16 Server Swappable Drive Interface: SATA/SAS Color: Black Cooling System: Internal: 80 x 80 x 38 mm fan x 3 / 7000 rpm / Pulse-width modulation (PWM) support, hot-swap, redundant ¦ Rear: 80 x 80 x 32 mm fan x 2 / exhaust / 6700 rpm / hot-swap System Cabinet Features: Chassis intrusion detection, SCSI Enclosure Services (SES2) support - Expansion / Connectivity
Expansion Bays: 16 (total) / 16 (free) x hot-swap - 3.5" Expansion Slots: 7 x full-length, full-height - Miscellaneous
Included Accessories: SAS backplane, air shroud Compliant Standards: UL, TUV, cUL, EN 60950, IEC 60950, CB, CCC, RoHS, REACH - Power
Power Device: Power supply Power Redundancy: Yes Installed Qty: 2 Max Supported Qty: 2 Power Capacity (of Single Unit): 1000 Watt Voltage Required: AC 120/230 V (50/60 Hz) Power Provided: 1000 Watt 80 PLUS Certification: 80 PLUS Titanium - Dimensions & Weight
Width: 17.2 in Depth: 25.5 in Height: 5.2 in - Manufacturer Warranty
Service & Support: Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year ¦ Limited warranty - advance parts replacement - 30 days - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 95 °F Humidity Range Operating: 8 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201601
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 43201601 |
| Part# | SPM-836BE1C-R1K03B1 |
| MFG Part# | CSE-836BE1C-R1K03B |
| 80 PLUS Certification | 80 PLUS Titanium |
| Form Factor | Rack-mountable - 3U |
| Product Type | System cabinet |
| Color | Black |
