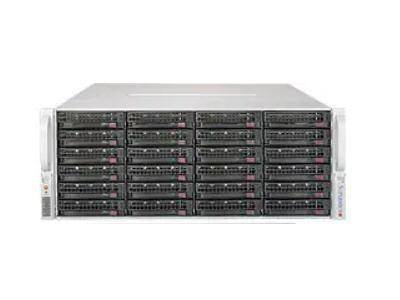

SUPERMICRO SSG UP 4U X11SPH-NCTF, CSE-847BE1C-R1K23LPB 6762409
SKU
6762409
Category: Network Storages
- Primary Information
Storage Device Type: Network Storage Server Cabinet Form Factor: 4U Processor / Type: Xeon RAM / Technology: DDR4 Data Link Protocol: Gigabit Ethernet Features: 1. Single Socket P (LGA 3647) supports 2nd Gen Intel Xeon Scalable processor (Cascade Lake/Skylake) 2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM 3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8,1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 4. 2x 10GBase-T with Intel X557 5. 36 Hot-swap 3.5" SAS/SATA drive bays with SES3 (24 front + 12 rear); 2 Internal fixed bay support up to4x 2.5" drive bays (optional) 4 Internal fixed 2.5" drive bays2 Hot-swap 2.5" NVMe/SATA (rear, optional) 6. SAS3 via Broadcom 3008 controller 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN 8. 7 High-performance 8cm PWM fans 9. 1200W Redundant Power Supplies Titanium Level (96%) - Storage
Hard Drive / Size: 3.5" - Storage Controller
RAID Level: RAID 0, 1, 5, 10 - Expansion
Interfaces & Connections: 1x VGA port;5 USB 3.0 ports;8 USB 2.0 ports;2 COM Ports;2 RJ45 10GBase-T LAN ports; 1 RJ45 Dedicated IPMI LAN port - Power
Power / Device Type: Power Supply Power / Redundant Capable: Yes Power / Provided (W): 1200 Watt - Dimensions&Miscellaneous
Width: 17.2 Inch Depth: 27.5 Inch Height: 7 Inch - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201802
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 43201802 |
| Part# | SPM-SSG-5049P-E1CTR36L |
| MFG Part# | SSG-5049P-E1CTR36L |
| Power / Redundant Capable | Yes |
| Storage Device Type | Network Storage Server |
| RAID Level | 1, 10, 5, RAID 0 |
| RAM / Technology | DDR4 |
| Processor / Type | Xeon |
| Cabinet Form Factor | 4U |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Hard Drive / Size | 3.5" |
