SUPERMICRO X11DRT-PS,CSV-217HQ+-R2K20BP2 6057888
SKU
6057888
CA$7,812.29

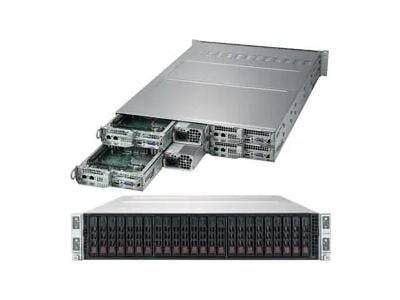

SuperServer 2029TP-HTR - 2U - Intel - Xeon - DDR4 - ASPEED AST2500 BMC - Intel C621 chipset - Power Supply Redundant - 2200Watt - Gigabit Ethernet - RJ45 Dedicated IPMI LAN, USB 3.0, VGA, Fast UART 16550 - Black
Category: Servers
- Primary Information
System Type: Server Model: SuperServer 2029TP-HTR Cabinet Form Factor: 2U Processor / Type: Xeon Processor / Manufacturer: Intel Mainboard / Chipset Type: Intel C621 RAM / Technology: DDR4 RAM / Total Slots Qty: 16 RAM / Max Supported Size: 4 TB Networking Type: Ethernet Hot-Swap Bays Qty: 6 RAID Level: RAID 0, 1, 5, 10 Data Link Protocol: Gigabit Ethernet Graphics Controller: ASPEED AST2500 BMC Power / Device Type: Power Supply - Redundant Power / Redundant Capable: Yes Power / Provided (W): 2200 Watt 80 PLUS Certification: 80 PLUS Titanium Interfaces & Connections: RJ45 Dedicated IPMI LAN, USB 3.0, VGA, Fast UART 16550 Expansion Slots Total (Free): 2 PCI-E 3.0 x16 Low-profile slots Width: 17.25 Inch Depth: 28.5 Inch Height: 3.47 Inch Weight: 72 lbs. Enclosure Color: Black Min Operating Temperature: 10 Celsius Max Operating Temperature: 35 Celsius Humidity Range Operating: 8% to 90% (non-condensing) - RAM
RAM / Max Supported Size: 4 TB RAM / Technology: DDR4 RAM / Total Slots Qty: 16 - Special Feature
RoHS: Y COO: Inquire TAA compliance: Inquire - Processor
Processor / Type: Xeon Processor / Manufacturer: Intel - Storage
Hot-Swap Bays Qty: 6 - Storage Controller
RAID Level: RAID 0, 1, 5, 10 - Networking
Networking Type: Ethernet Data Link Protocol: Gigabit Ethernet - Video
Graphics Controller: ASPEED AST2500 BMC - Power
Power / Device Type: Power Supply - Redundant Power / Redundant Capable: Yes Power / Provided (W): 2200 Watt 80 PLUS Certification: 80 PLUS Titanium - Expansion
Interfaces & Connections: RJ45 Dedicated IPMI LAN, USB 3.0, VGA, Fast UART 16550 Expansion Slots Total (Free): 2 PCI-E 3.0 x16 Low-profile slots - Dimensions&Miscellaneous
Width: 17.25 Inch Depth: 28.5 Inch Height: 3.47 Inch - UNSPSC Code
UNSPSC Code: 43211502
| BRANDS | SUPERMICRO COMPUTER |
|---|---|
| UNSPSC | 43211502 |
| Part# | SPM-SYS-2029TP-HTR |
| MFG Part# | SYS-2029TP-HTR |
| Mainboard / Chipset Type | Intel C621 |
| Processor / Manufacturer | Intel |
| RAM / Total Slots Qty | 16 |
| 80 PLUS Certification | 80 PLUS Titanium |
| Power / Redundant Capable | Yes |
| RAID Level | 1, 10, 5, RAID 0 |
| RAM / Technology | DDR4 |
| Processor / Type | Xeon |
| Cabinet Form Factor | 2U |
| Data Link Protocol | Gigabit Ethernet |
| Graphics Controller | ASPEED AST2500 BMC |
| Power / Device Type | Power Supply - Redundant |
| System Type | Server |
