SWITCH 24-PORT/POE MNGD GBT ETH 2 SFP PT 5104863
SKU
5104863
CA$550.65

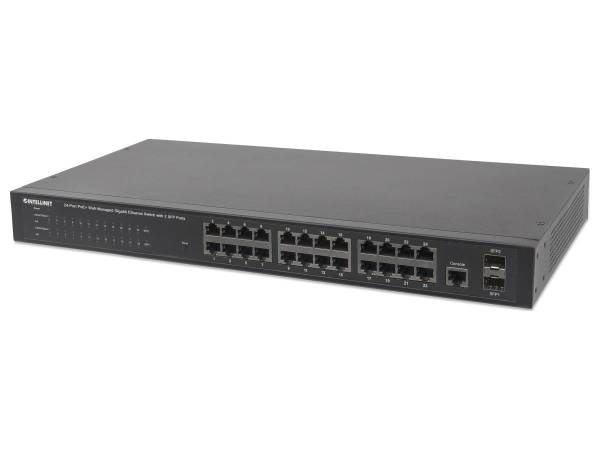

Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports 24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19in Rackmount (IPS-24GM02-240W)
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: IPS-24GM02-240W Form Factor: Rackmount Connectivity Technology: Wired Data Transfer Rate: 1000 Mbps Networking / Ports Qty: 26 Data Link Protocol: Gigabit Ethernet Max Power Consumption: 260 Watt Power / Voltage Required: 90 - 260 V AC Features: Provides power and data connection for up to 24 PoE network devices; Save installation cost by delivering data and power over existing network cables; Domotz compatible for cloud management (may require firmware upgrade); 10/100/1000 auto-sensing ports automatically detect optimal network speeds; Two small form-factor pluggable GBIC module slots (SFP); IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports; Power output up to 30 watts per port; PoE power budget of 240 watts; Supports both PoE modes A (even ports) and B (odd ports); Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras); Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length; Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated; Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection; All RJ45 ports with Auto-MDIX and NWay auto-negotiation support; 52 Gbps switch fabric; Web-based configuration; Remote Reboot/restart; Supports SNMP management; Supports VLAN (tag-based and port-based); Provides IEEE 802.1x port-based security; Supports link aggregation (trunking); IGMP Snooping for multicast filtering; Supports bandwidth control per port; Supports port mirroring; - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: 240W MAC Address Table Size: 8k 10/100/1000BASE-T Ports: 24 SFP+ Ports: 2 Interfaces: RJ45, SFP - Interfaces / Ports
Interfaces: RJ45, SFP 10/100/1000BASE-T Ports: 24 SFP+ Ports: 2 - Dimensions&Miscellaneous
What's Included: 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports; Power cable; User manual; Width: 440 Mm Depth: 208 Mm Height: 44 Mm Weight: 3.1 Kg - Service&Support
Service & Support Type: Three-Year Warranty - Special Feature
Min Operating Temperature: 0 celsius Max Operating Temperature: 40 celsius Min Storage Temperature: -20 celsius Max Storage Temperature: 70 celsisu RoHS: Y COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | MANHATTAN/INTELLINET |
|---|---|
| UNSPSC | 43222612 |
| Part# | ITR-560559 |
| MFG Part# | 560559 |
| UPC | 766623560559 |
| Network Device Type | Switch |
| 10/100/1000BASE-T Ports | 24 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1000 Mbps |
| Form Factor | Rackmount |
| Networking / Ports Qty | 26 |
| Data Link Protocol | Gigabit Ethernet |
