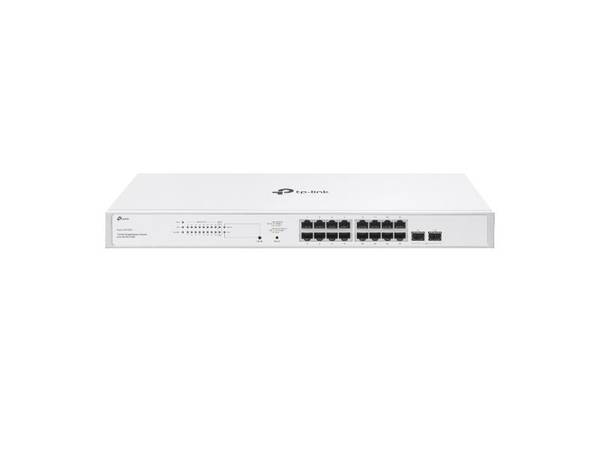

Product Description: | TP-Link Festa FS318GP V1 - switch - 18 ports - smart - rack-mountable |
Device Type: | Switch - 18 ports - smart |
Enclosure Type: | Rack-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE+ |
PoE Budget: | 150 W |
Performance: | Switching capacity: 36 Gbps ¦ Packet forwarding rate: 26.78 Mpps ¦ Packet buffer size: 4.1 Mbit |
Capacity: | IP interfaces: 16 ¦ Static routes: 32 |
MAC Address Table Size: | 8K entries |
Jumbo Frame Support: | 9KB |
Routing Protocol: | Static IP routing, IGMP, STP, RSTP, MLD |
Remote Management Protocol: | IPv4, IPv6, DHCP, TCP/IP, UDP, RSTP, SNMP, NTP, SSH, SSH-2 |
Features: | Cloud managed, ZTP, SON technology, VLAN support, ACL support, IGMP snooping, metal housing, auto-negotiation, auto-uplink (auto MDI/MDI-X), fanless, security lock slot (cable lock sold separately), loopback detection, flow control, LLDP-MED, rate limit, Storm Control, port isolation, LAG, automatic topology detection, firmware upgradable, store and forward, EEE, reset button, DHCP server, DHCP relay, MLD snooping, Phantom DST |
Compliant Standards: | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
Power: | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH): | 17.3 in x 7.1 in x 1.7 in |
System Requirements: | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux |
Manufacturer Warranty: | 5-year warranty |
Device Type: | Switch - 18 ports - smart |
Enclosure Type: | Rack-mountable |
Subtype: | Gigabit Ethernet |
Ports: | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE): | PoE+ |
PoE Budget: | 150 W |
Performance: | Switching capacity: 36 Gbps ¦ Packet forwarding rate: 26.78 Mpps ¦ Packet buffer size: 4.1 Mbit |
Capacity: | IP interfaces: 16 ¦ Static routes: 32 |
MAC Address Table Size: | 8K entries |
Jumbo Frame Support: | 9KB |
Routing Protocol: | Static IP routing, IGMP, STP, RSTP, MLD |
Remote Management Protocol: | IPv4, IPv6, DHCP, TCP/IP, UDP, RSTP, SNMP, NTP, SSH, SSH-2 |
Authentication Method: | Secure Shell (SSH), Secure Shell v.2 (SSH2) |
Features: | Cloud managed, ZTP, SON technology, VLAN support, ACL support, IGMP snooping, metal housing, auto-negotiation, auto-uplink (auto MDI/MDI-X), fanless, security lock slot (cable lock sold separately), loopback detection, flow control, LLDP-MED, rate limit, Storm Control, port isolation, LAG, automatic topology detection, firmware upgradable, store and forward, EEE, reset button, DHCP server, DHCP relay, MLD snooping, Phantom DST |
Compliant Standards: | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
RAM: | 256 MB |
Flash Memory: | 32 MB |
Status Indicators: | PoE max, system, power, PoE, link/activity/speed |
Interfaces: | 16 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP |
Power Device: | Internal power supply |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Power Consumption Stand by: | 8.58 Watt |
Included Accessories: | Silicone feet |
Rack Mounting Kit: | Included |
Compliant Standards: | RoHS, FCC |
Software Included: | TP-Link Festa |
OS Required: | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux |
Width: | 17.3 in |
Depth: | 7.1 in |
Height: | 1.7 in |
Service & Support: | Limited warranty - 5 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 113 °F |
Humidity Range Operating: | 10 - 90% RH (non-condensing) |
Min Storage Temperature: | -40 °F |
Max Storage Temperature: | 158 °F |
Humidity Range Storage: | 5 - 90% RH (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222612 |
BRANDS | TP-LINK |
---|---|
UNSPSC | 43222612 |
Part# | TPL-FESTA FS318GP |
MFG Part# | FESTA FS318GP |
UPC | 810142820684 |
Device Type | Switch - 18 ports - smart |
Enclosure Type | Rack-mountable |
Remote Management Protocol | DHCP, IPv4, IPv6, NTP, RSTP, SNMP, SSH, SSH-2, TCP/IP, UDP |
