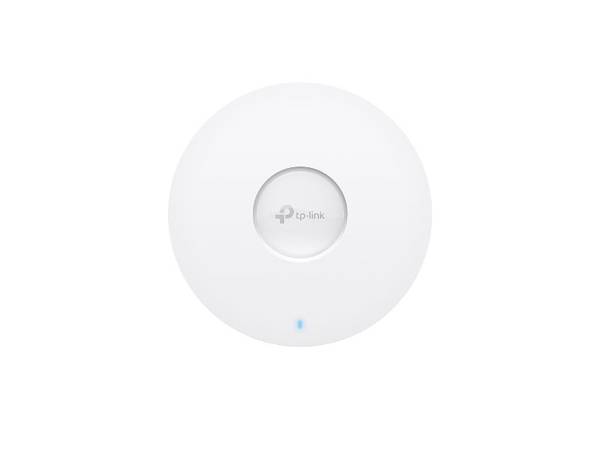

Product Description: | TP-Link Omada EAP673 V1 - wireless access point - Wi-Fi 6 - cloud-managed |
Device Type: | Wireless access point |
Form Factor: | Wall / ceiling mountable |
Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
Frequency Band: | 2.4 GHz, 5 GHz |
Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 4804 Mbps ¦ Channel bandwidth: 160 MHz |
Capacity: | Maximum number of configured SSIDs (2.4 Ghz): 8 ¦ Maximum number of configured SSIDs (5 Ghz): 8 ¦ Number of concurrent clients: 250+ ¦ MAC filter entries: 4000 |
Included Accessories: | Wall/ceiling mounting kit |
OS Required: | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
Power Over Ethernet (PoE) Supported: | PoE+ |
Dimensions (WxDxH): | 8.7 in x 8.7 in x 1.3 in |
Weight: | 23.63 oz |
Device Type: | Wireless access point |
Width: | 8.7 in |
Depth: | 8.7 in |
Height: | 1.3 in |
Weight: | 23.63 oz |
Form Factor: | Wall / ceiling mountable |
Connectivity Technology: | Wireless |
Data Transfer Rate: | 5378 Mbps |
Line Coding Format: | OFDMA, 1024 QAM, OFDM |
Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
Spread Spectrum Method: | OFDMA, OFDM |
Network / Transport Protocol: | HTTP, HTTPs, NTP |
Routing Protocol: | Static IP routing |
Remote Management Protocol: | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, NTP |
Cloud-Managed: | Yes |
Frequency Band: | 2.4 GHz, 5 GHz |
Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 4804 Mbps ¦ Channel bandwidth: 160 MHz |
Capacity: | Maximum number of configured SSIDs (2.4 Ghz): 8 ¦ Maximum number of configured SSIDs (5 Ghz): 8 ¦ Number of concurrent clients: 250+ ¦ MAC filter entries: 4000 |
Wi-Fi Rating: | AX5400 |
Status Indicators: | Status |
Features: | Zero-touch provisioning (ZTP), seamless roaming, Omada Mesh technology, Auto Channel Select (ACS), MU-MIMO technology, self-healing network, secure guest network, 802.1x authentication, band steering, Airtime Fairness, reset button, wireless radio enable/disable, Transmit Power Control (TPC), Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, beamforming technology, rate limit, schedule reboot, Wireless Scheduler, Captive Portal, Access Control List (ACL) support, MAC address filtering, client isolation, SSID to VLAN mapping, rogue AP detection, E-mail alert, LED on/off button, multi-site management, VLAN management, Syslog support, load balancing, rogue access point detection, Software Defined Networking (SDN), dynamic IP mode, remote firmware upgrade, lightning protection |
Encryption Algorithm: | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
Authentication Method: | Secure Shell (SSH), Radio Service Set ID (SSID), RADIUS |
Compliant Standards: | Wi-Fi CERTIFIED 6, IEEE 802.3at, IEEE 802.11, IEEE 802.1x, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
Antenna: | Internal |
Directivity: | Omni-directional |
Interfaces: | 1 x 2.5 GBase-T (PoE+) - RJ-45 |
Included Accessories: | Wall/ceiling mounting kit |
Compliant Standards: | FCC, RoHS, IC |
Power Over Ethernet (PoE) Supported: | PoE+ |
Power Consumption Operational: | 20.8 Watt |
Software Included: | Omada Controller |
OS Required: | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 10 - 90% RH (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222631 |
BRANDS | TP-LINK |
---|---|
UNSPSC | 43222631 |
Part# | TPL-EAP673 |
MFG Part# | EAP673 |
UPC | 840030711909 |
Device Type | Wireless access point |
Connectivity Technology | Wireless |
Data Transfer Rate | 5378 Mbps |
Form Factor | Wall / ceiling mountable |
Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency Band | 2.4 GHz, 5 GHz |
Remote Management Protocol | HTTP, HTTPS, NTP, SNMP 1, SNMP 2c, SNMP 3, SSH |
Encryption Algorithm | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
