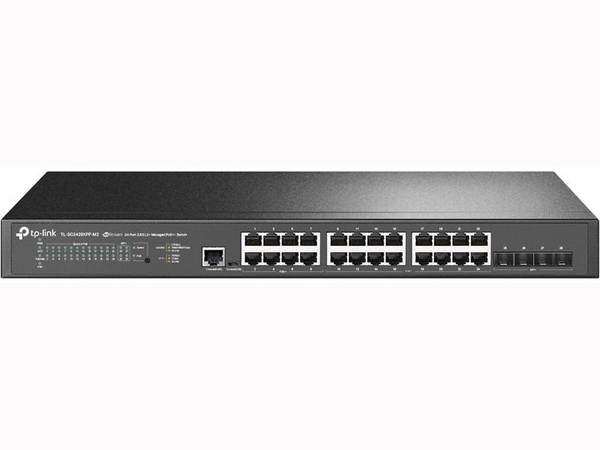

TP-LINK JETSTREAM 24-PORT 2.5GBASE-T AND 4-PORT 10GE SFP+ L2+ MANAGED 7288668
SKU
7288668
CA$899.99
SWITCH WITH 16-PORT POE+ & 8-PORT POE++PORT: 24 2.5G RJ45 PORTS (8 2.5G POE++ PORTS & 16 2.5G POE+ PORTS), 4 10G SFP+ SLOTS, RJ45/MICRO-USB CONSOLE PORTSPEC: 802.3BT/AT/AF, 500 W POE POW
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Form Factor: SFP+ Data Transfer Rate: 2.5 Gbps Data Link Protocol: Gigabit Ethernet VLAN IP interfaces: VLAN Group - Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ Voice VLAN Networking Compliant Standards: 802.3bt/at/af compliant Power / Device Type: Power Supply Power / Provided (W): 500 Watt Max Power Consumption: 629.1 Watt Power / Voltage Required: 100-240 V AC~50/60 Hz MTBF: 2153.45 BTU/h (110 V/60 Hz) Features: 2.5G PoE++/PoE+ Ports for WiFi 7/6E/6: 24× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs. 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. 500 W PoE Budget: 8× 802.3bt/at/af/-compliant PoE++ and 16× 802.3at/af-compliant PoE+ ports with a total power supply of 500 W*. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient use of network resources. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. - Network
Power Over Ethernet (PoE) Support: Standard: 802.3bt/at/af compliant PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port Power Budget: 500 W MAC Address Table Size: 32 K Jumbo Frame Support: 9 KB Interfaces: 24× 2.5 Gbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port - Interfaces / Ports
Interfaces: 24× 2.5 Gbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port VLAN IP interfaces: VLAN Group - Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ Voice VLAN - Dimensions&Miscellaneous
What's Included: TL-SG3428XPP-M2 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet Width: 17.3 Inch Depth: 13.0 Inch Height: 1.7 Inch - Special Feature
Min Operating Temperature: 0C Max Operating Temperature: 40C Min Storage Temperature: -40C Max Storage Temperature: 70C RoHS: Y COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-SG3428XPP-M2 |
| MFG Part# | SG3428XPP-M2 |
| UPC | 840030709739 |
| Network Device Type | Switch |
| Data Transfer Rate | 2.5 Gbps |
| Form Factor | SFP+ |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
